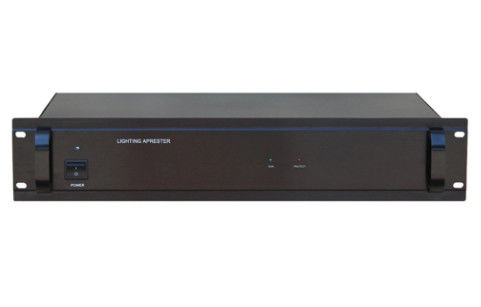

pa system 4 channel lightning protector in public adress system

pa system 4 channel lightning protector in public adress system
pa system 4 channel lightning protector in public adress system pa system 4 channel lightning protector in public adress system pa system 4 channel lightning protector in public adress system

Large Image :  pa system 4 channel lightning protector in public adress system

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-205LP
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD259~295
Packaging Details: (L*W*H)555*455*185
Delivery Time: 5-8work days
Supply Ability: 1000cottons

pa system 4 channel lightning protector in public adress system

Description
Warranty: 5years Description: Lightning Protector
Channels: 4Channels Selectable Input: 70-100V , 20A
Output: 70-100V , 20A Outer Packing Size (mm): (L*W*H)555*455*185
Gross Weight: 11.5kg Lightning Proof Grade: Accord ToIEC529/EN60 529: IP 20
Overvoltage Threshold: 280V Creep Age Protect: ≥10mA



pa system 4 channel lightning protector in public adress system 0

FEATURES:

  • The 4 channel lightning protector will conduct the high current lightning to the earth to protect the public address system equipment from electronic shock damage
  • Lightning protect, over voltage protect, creep age protect for public address system.
  • 4 channels input/output.
  • Status indicator visually
  • Remote controlled available.
  • AC220V, AC110V and DC24V voltage selected.
  •

SPECIFICATIONS:

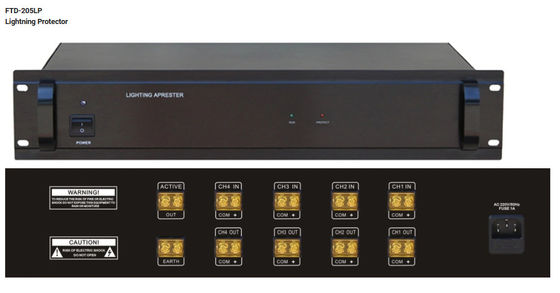

Model FTD-205LP
Description Lightning Protector
Channels 4Channels selectable
Inputs 70-100V , 20A
Outputs 70-100V , 20A
Lightning proof grade Accord toIEC529/EN60 529: IP 20
Overvoltage threshold 280V
Max current peak value Imp(8/20)μs 30kA
Creep age protect ≥10mA
Insulation resistance ≥10MΩ
Alarm output level 0V(short circuit)
Protection AC fuse (220V: F0.6AL, 110V: F1AL)
Power Requirement 1. AC 220V/110V 50/60Hz
2. DC 24V
Outer Packing Size (mm) (L×W×H)555×455×185
Unit Size (mm) (L×W×H)484×349.5×88
Gross weight 11.5kg
Net weight 9.7kg


pa system 4 channel lightning protector in public adress system 1pa system 4 channel lightning protector in public adress system 2pa system 4 channel lightning protector in public adress system 3pa system 4 channel lightning protector in public adress system 4

exihibition

 pa system 4 channel lightning protector in public adress system 5





FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
