Product Details:
|
| Model Number: | FTD-10WT | The Body Material: | Metal |
|---|---|---|---|
| Weight: | 6.8kg | Brand Name: | FTD |
| Warranty: | 3months-1year | Shell Material: | Metal |
| High Light: | FTD-10WT Public Address System,Mp3 10 zone amplifier,Intelligent mp3 audio amplifier |
||

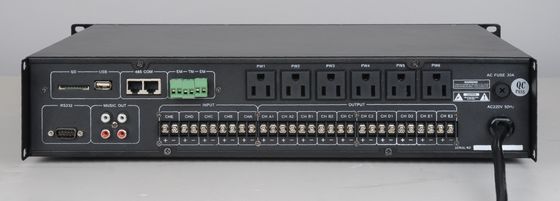

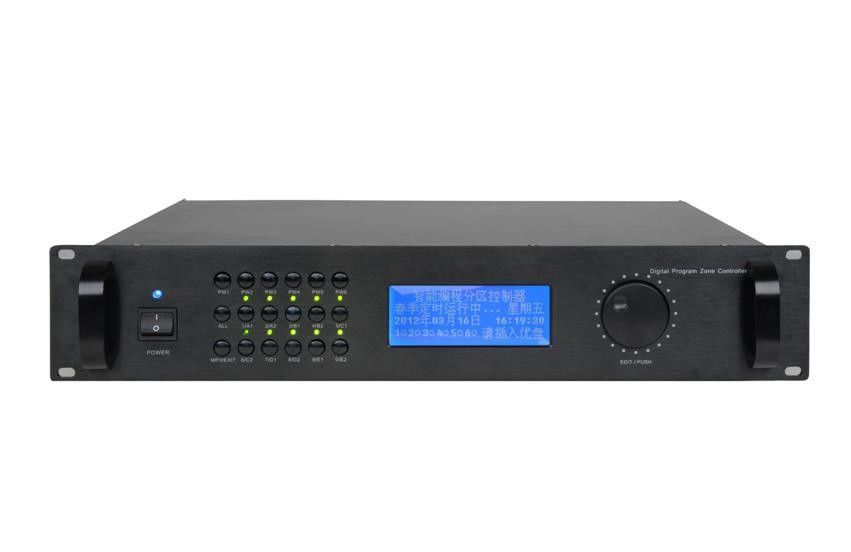

PA System Mp3 Intelligent 10 Zone Controller Amplifier
Features:
Specifications:
| Model | FTD-10WT |
| Description | Public Address System Controller with Mp3 |
| Function Button | Light touch press buttons include: 4 power switch buttons, 1 MP3 control button, 1 backup program switch,10 zones speaker selector button, all zones button, 1 music or paging switch button. One menu button. |
| Indication Method | 192x64 LCD display, English |
| Audio Output | 1KΩ 0.775V Unbalance(6.35 RC), 0V(Short Circuit) Industrial Standard |
| EMC Input and Output | Integrated Terminal Block, 0V(Short Circuit) Industrial Standard |
| 100V Input | Integrated Terminal 5 Channels: CHA CHB CHC CHD CHE |
| Amplifier Input and Output | 0.5W |
| Monitor Power of Speaker | −∞~0dB |
| Monitor Volume Attenuator | 24 hours(hour-minutes-seconds) weekly |
| Time Mode | Total 5pcs(4 normal programs, 1EMC) |
| Program Quantity | Total 512 Steps, 1 day 200 Steps |
| Program Steps | RS422 |
| Communication Protocols | RS485 and RS232 |
| Communication Port | Two RJ45 ports for remote microphone, one RS232 port for PC |
| Communication Speed | 4800bps |
| MP3 Frequency Response | 20Hz~20KHz/ 1dB |
| Mp3 Store Format | Compatible FAT12, FAT16, FAT32 |
| Power Supply | ~110V/60Hz or ~230V/50Hz |
| Dimensions | 484x303x88mm |
| Weight | 6.8kg |
