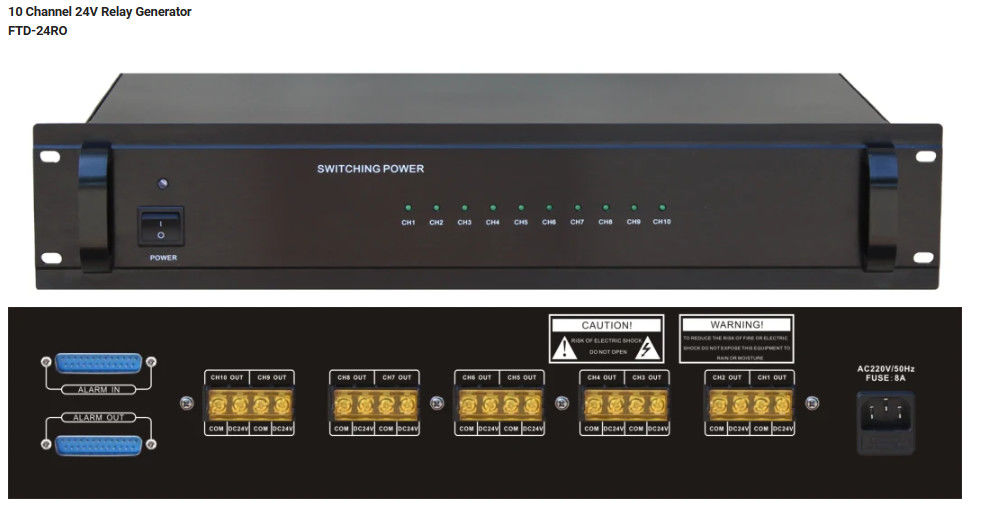

Large Image :  public adress system 10 Channel 24V Relay Generator PA system

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-24RO
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD112.66~116.66
Packaging Details: 520*435*88(mm)
Delivery Time: 5-8work days
Supply Ability: 1000cottons

public adress system 10 Channel 24V Relay Generator PA system

Description
Warranty: 5years Description: 24V Relay Panel
Control Channels: CH1 To CH10 Control Input: 1 Set Of Inputs CH1~CH10
Control Output: 1 Set Of Outputs CH1~CH10 Dimension: 520*435*88(mm)
Weight: 8.8kg Power Consumption: 20-300W
Power Supply: AC220V, 50-60Hz



public adress system 10 Channel 24V Relay Generator PA system 0

FEATURES:

  • 10-channel 24V relay output for use in a public address system
  • 24V relay generator to provide power for volume control override in case of emergency.
  • Activated by a 10- channel input, the input alarm signals control the 24V power source outputs, thus forcefully override the PA system.
  • Two way of alarm input by 0V signal or short circuit signal
  • LED indicator for 10 channel power output monitor

SPECIFICATIONS:

Model FTD-24RO
Description 24V Relay Panel
Control Channels CH1 to CH10
Control Input 1 Set of Inputs CH1~CH10
Control Output 1 Set of outputs CH1~CH10
Trigger Low level 0V or short circuit signal
Output Voltage DC24V 1A for each channel CH1 ~ CH10
Indicator CH1 to CH10
Protection AC FUSE 6A 1
Power Supply AC220V, 50-60Hz
Power Consumption 20-300W
Dimension 520×435×88(mm)
Weight 8.8kg




public adress system 10 Channel 24V Relay Generator PA system 1public adress system 10 Channel 24V Relay Generator PA system 2public adress system 10 Channel 24V Relay Generator PA system 3public adress system 10 Channel 24V Relay Generator PA system 4

exihibition

 public adress system 10 Channel 24V Relay Generator PA system 5





FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
