Product Details:
|
| Warranty: | 5years | Description: | Voice Evacuation & Fire Alarm Panel With Recorder |
|---|---|---|---|
| Output: | >200mV Sire Or Recorded Message | Recorder: | IC Inside, 60 Seconds, Write In More Than 8,000 Times. |
| Frequency Response: | 100Hz-3.4kHz(±3dB) | Alarm Input: | 30 Alarm Input, 0V Short Circuit Closed Contact |
| Power Requirement: | AC 220-240V/50-60Hz | Dimension: | 484(W)*350(D)*88(H)mm |
| Gross Weight: | 8kg |
Description:

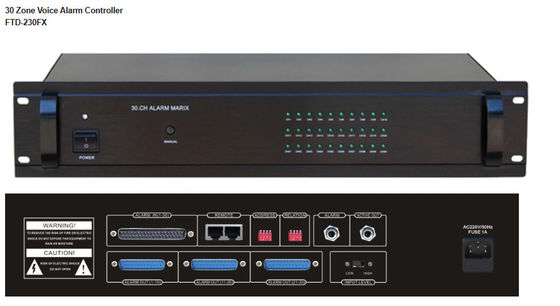

The FTD-230FX is a multiple-voice alarm controller suitable for high capacity zone system. It includes 30 zone fire alarm interfaces,
alarm matrix and voice message player, it can broadcast 3 voice messages as alert, EVAC and clear to help people been safely
evacuated. The alarm modes can be all zones, different voice alarm in separate zone, group zones and neighboring zones.
It is built-in voice alarm generator through the built-in Mp3 player, The SD card slot on rear panel is used to read SD memory card,
where up to 99 pre-recorded voice alarm messages could be automatically triggered to different zone outputs by the respective 30
close contact input as trigger.
Each voice alarm controller capacity is 30 zones and 30 voice messages, which could be expanded to 300 zones and 2,700 voice
messages. The expansion controller with its dipswitch as ID address could be easily distinguished by the controller.

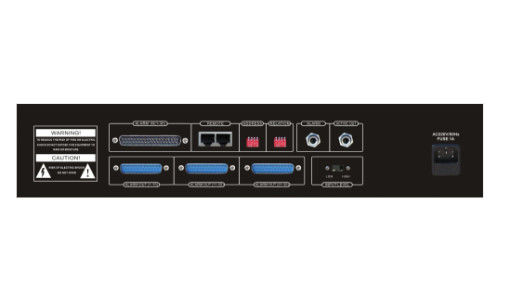

The dual RCA audio output is provided to link to other fire alarm equipments. 2 RJ45 communication ports is used cascade another

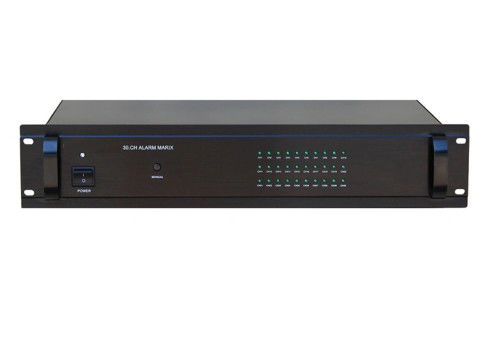

unit or controller. Front panel's LED is used to display the ID address. Each 30 zones' select buttons and state indicators are on the
front panel. An overall volume control is provided.
Feature:
|
exihibition
FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
