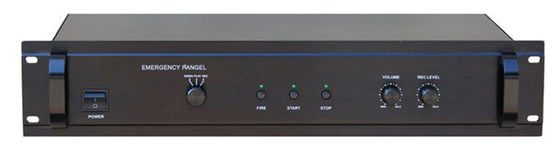

Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional

Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional
Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional

Large Image :  Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-202F
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD95.7~97.7
Packaging Details: 484(W)*350(D)*88(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional

Description
Warranty: 5years Description: Voice Evacuation & Fire Alarm Panel With Recorder
Output: >200mV Sire Or Recorded Message Recorder: IC Inside, 60 Seconds, Write In More Than 8,000 Times.
Frequency Response: 100Hz-3.4kHz(±3dB) Alarm Input: One Alarm Input, 0V Short Circuit Closed Contact
Power Requirement: AC 220-240V/50-60Hz Dimension: 484(W)*350(D)*88(H)mm
Gross Weight: 7.8kg Net Weight: 6.1kg

Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 0



FEATURES:

  • Automatically broadcast voice alarm message after trigger by fire system.
  • Built-in voice recorder and fire alarm generator.
  • The recorder available through external microphone and external line.
  • The recorder with start, stop and play functions.
  • The system with siren, play, record and off selective knob.

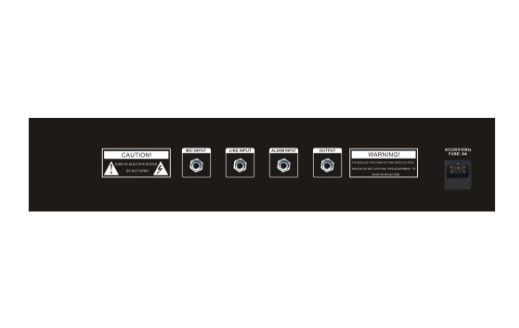

  • One voice alarm input and one alarm output by phone jack type.
  • One microphone input and one line input by phone jack type
  • 1 minute of digital customized voice evacuation message to the built-in memory IC.
  • With record volume and alarm output volume attenuator by protective knobs.
  • With Fire, start, stop and power working status indicators.
  •

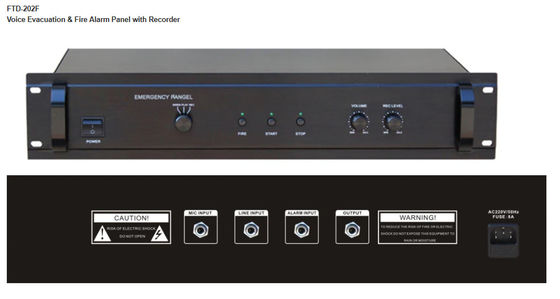

Model FTD-202F
Name Voice Evacuation & Fire Alarm Panel with Recorder
Input Microphone: <5mV, 600Ω, unbalanced;
Line: <400mV 10kΩ, unbalanced;
Output >200mV Sire or Recorded Message
Recorder IC inside, 60 seconds, write in more than 8,000 times.
Frequency Response 100Hz-3.4kHz(±3dB)
Alarm Input One alarm input, 0V short circuit closed contact
Power Requirement AC 220-240V/50-60Hz
Dimension 484(W)×350(D)×88(H)mm
Packaging 520(W)×435(D)×185(H)mm
Net Weight 6.1kg
Gross Weight 7.8kg




Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 1Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 2Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 3Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 4

exihibition

 Voice Evacuation & Fire Alarm Panel with Recorder pa system speaker outdoor professional 5





FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
