Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-110S
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD108-110
Packaging Details: 483(W)*350(D) * 89(H) mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

10 Zone Speaker Selector public adress system full set

Description
Warranty: 5years Description: 10 Zone Speaker Selector
Group A Input: 70V/100V, Aux Signal Group B Input: 70V/100V, EMC And Aux Signal
Zone: CH1~CH10 Power Supply: AC220-240V/50-60Hz
Dimension: 483(W)*350(D) * 89(H) Mm Channel Exchange: 500W, Aux Signal
Gross Weight: 8.1kg Net Weight: 6.4kg

Features:

  • Public Address System 10 Zone Speaker Selector.
  • 19" rack mount type with mounting handheld.
  • Main equipment of multiple zone PA sound system.
  • 10 zone capacity, expandable up to 128 units by cascaded more units together.
  • Each 10 zone with working indicator and selective buttons.
  • With all zone on/off button for easy operation.
  • 4 line inputs and 4 EMC inputs, built-in 5W monitor speaker.
  • Capacity to divide one amplifier into 10 zone for separate control.
  • Black finish of aluminum front panel.
  • Power consumption of 25W.
  • Dimension size of 484×350×88mm.
  • Net weight of 6.9kg.
  • AC 220V-230V, 50-60Hz operation.
  • Comes with 5 years quality warranty.
  •
  •

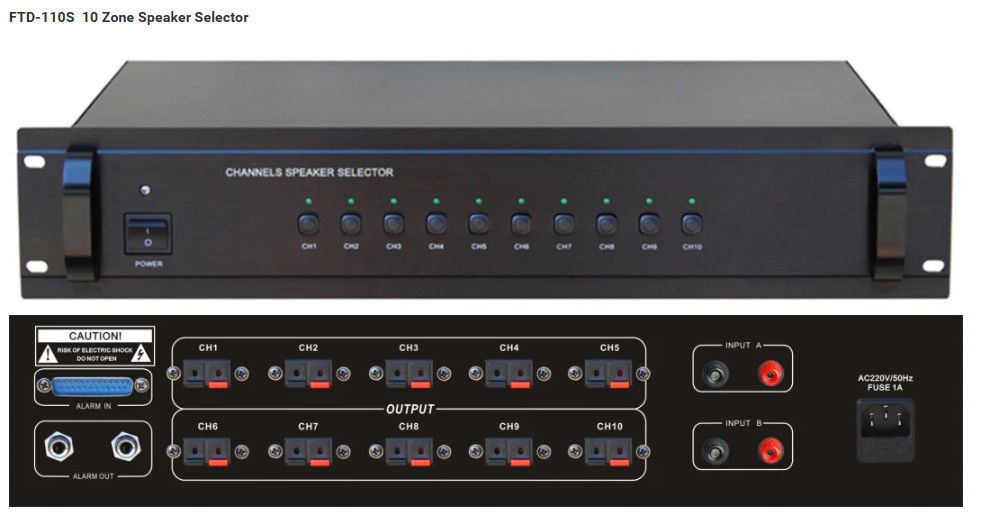

Model FTD-110S
Description 10 Zone Speaker Selector
Group A Input 70V/100V, Aux Signal
Group B Input 70V/100V, EMC and Aux Signal
Zone CH1~CH10
Power Load Total: 1KW; Each zone: 100 W
Channel Exchange 500W, Aux Signal
Contact Input (0V) short circuit contact input,(ALARM IN)
Contact Output (0V) short circuit contact two outputs,(ALARM OUT)
Wire Cable (3×0.75 mm2)×1.5 meters
Power Supply AC 220V±10%50-60Hz
Power Consumption 10~15W
Dimension 483(W)×350(D) × 89(H) mm
Packaging 520(W)×435(D) ×185(H)mm
Net Weight 6.4kg
Gross Weight 8.1kg








10 Zone Speaker Selector public adress system full set 010 Zone Speaker Selector public adress system full set 110 Zone Speaker Selector public adress system full set 210 Zone Speaker Selector public adress system full set 3

exihibition

 10 Zone Speaker Selector public adress system full set 4





FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
