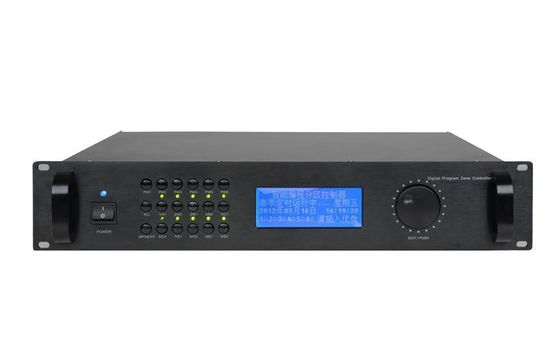

public adress speaker Intelligent 10 Zone Public address system Controller with Mp3

public adress speaker Intelligent 10 Zone Public address system Controller with Mp3
public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 public adress speaker Intelligent 10 Zone Public address system Controller with Mp3

Large Image :  public adress speaker Intelligent 10 Zone Public address system Controller with Mp3

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-10WT
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD210~212
Packaging Details: 484*303*88mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons
Contact Now

public adress speaker Intelligent 10 Zone Public address system Controller with Mp3

Description
Description: Intelligent 10 Zone Controller With Mp3 Indication Method: 192*64 LCD Display, English
Amplifier Input And Output: 0.5W Monitor Volume Attenuator: 24 Hours(hour-minutes-seconds) Weekly
Time Mode: Total 5pcs(4 Normal Programs, 1EMC) Weight: 6.8kg
Warranty: 5years Program Quantity: Total 512 Steps, 1 Day 200 Steps
Program Steps: RS422 Communication Protocols: RS485 And RS232
Dimensions: 484*303*88mm




Features:

  • Public address system classic cost-effective medium to big-scale sound system intelligent controller.
  • Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc.
  • All in one intelligent PA system controller built in weekly timer, 10 zone speaker selector, Mp3 player, remote 10 zone paging controller, fire alarm and voice evacuation system interface and programmable power sequencer.
  • Built-in weekly timer, monitor, 10 zone speaker selector, 6 channel power sequencer and Mp3 player.
  • Expandable from 10 zones to 160 zones.
  • 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm.One amplifier or 5 amp inputs divided into 10 zones speaker output.
  • Timely broadcast up to 99 program sources
  • Broadcast modes: random, repeat and circle.
  • 4 regular programs and 1 spare program for emergency/particular circumstance.
  • Functional swift key for internal MP3 player priority manual broadcast.
  • Zone1-10 selector, all zone selectors, music/paging switch, MP3 swift button, swift program button, power control channel 1-4 buttons & menu button.
  • Power handling 5000W over each 10 zones
  • The system communication distance up to 1kms
  • Memory function even in case of power off.
  •
Model FTD-10WT
Description Intelligent 10 Zone Controller with Mp3
Function Button Light touch press buttons include: 4 power switch buttons, 1 MP3 control button, 1 backup program switch,10 zones speaker selector button, all zones button, 1 music or paging switch
button. One menu button.
Indication Method 192x64 LCD display, English

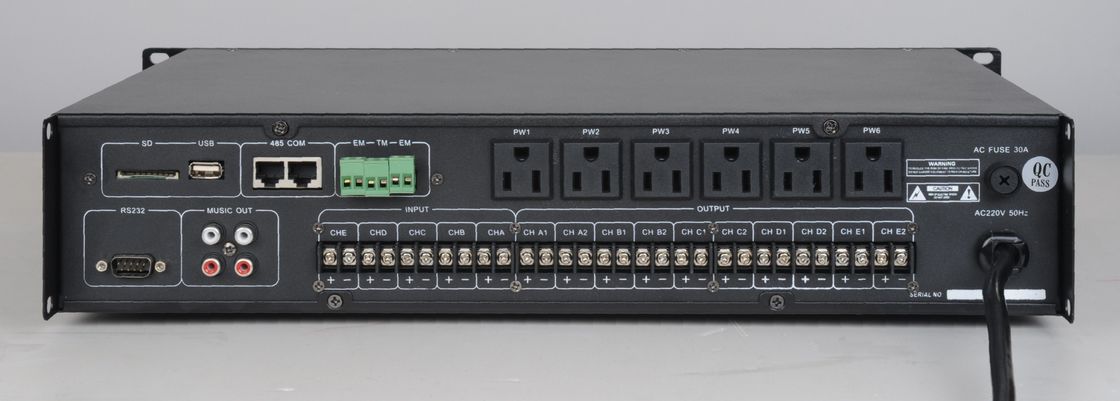

Audio Output 1KΩ 0.775V Unbalance(6.35 RC), 0V(Short Circuit) Industrial Standard
EMC Input and Output Integrated Terminal Block, 0V(Short Circuit) Industrial Standard
100V Input Integrated Terminal 5 Channels: CHA CHB CHC CHD CHE
Amplifier Input and Output 0.5W
Monitor Power of Speaker −∞~0dB
Monitor Volume Attenuator 24 hours(hour-minutes-seconds) weekly
Time Mode Total 5pcs(4 normal programs, 1EMC)
Program Quantity Total 512 Steps, 1 day 200 Steps
Program Steps RS422
Communication Protocols RS485 and RS232
Communication Port Two RJ45 ports for remote microphone, one RS232 port for PC
Communication Speed 4800bps
MP3 Frequency Response 20Hz~20KHz/ 1dB
Mp3 Store Format Compatible FAT12, FAT16, FAT32
Power Supply ~110V/60Hz or ~230V/50Hz
Dimensions 484x303x88mm
Weight 6.8kg


public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 0public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 1public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 2public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 3

exihibition

 public adress speaker Intelligent 10 Zone Public address system Controller with Mp3 4





FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
