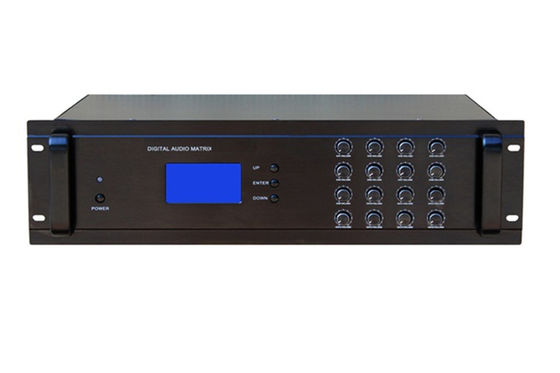

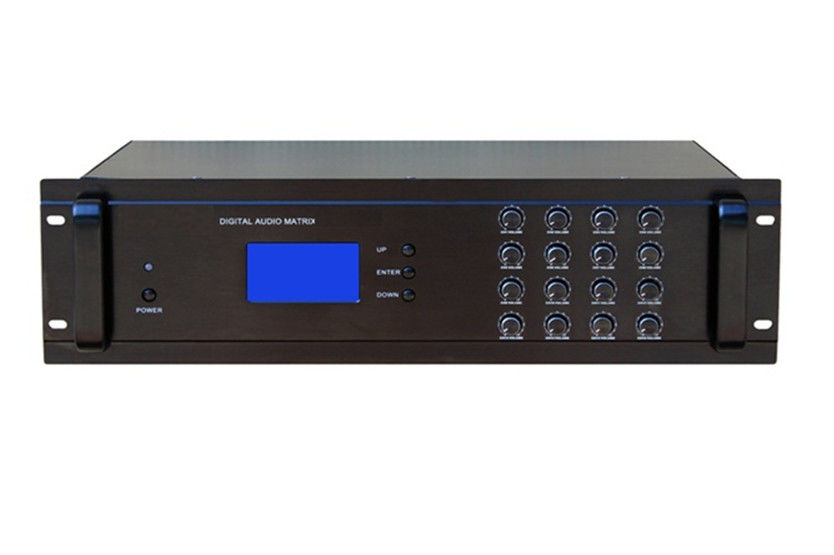

Large Image :  public adress system full set Audio Matrix Controller for Public Address System

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTD-16MX
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Price: USD433.5~435.5
Packaging Details: 484(W)*390(D)*133(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

public adress system full set Audio Matrix Controller for Public Address System

Description
Description: Intelligent 16 Channel Audio Matrix Controller Frequency Response: 60-16KHz (±3dB)
DNR Sensitivity: MW 5Mv/m Power Supply: AC 230V Or 110V, 50-60Hz
Dimension: 484(W)*390(D)*133(H)mm Gross Weight: 8.5kg
Warranty: 5years Channel: 16 Channel Inputs And 16 Channel Outputs
Max Capacity: 128 Zones By Cascaded 8 Units Together Call Station Input: Call Station Input 1-5, RJ45 Port, 10kΩ, 10V, Balanced
Display: 128×64 LCD Display In English




Features:

  • Public address system classic cost-effective medium to big-scale sound system intelligent controller.
  • Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc.
  • All in one intelligent PA sound system include 16 channel audio matrix, Mp3 player & USB, 16 zone remote paging system, fire alarm & voice evacuation system interface, weekly scheduled timer and power sequencer.
  • 16 Channel audio matrix controller with 16 channel inputs and 16 outputs.
  • Zone capacity expandable to 128 zones by cascaded 8 unit together, master controller and 7 units slave controllers.
  • All in one intelligent PA System controller built in 16 channel audio matrix, weekly timer, 16 zone speaker selector, Mp3 player, remote 16 zone paging controller, fire alarm and voice evacuation system interface and programmable power sequencer.
Model FTD-16MX
Description Intelligent 16 Channel Audio Matrix Controller
Channel 16 channel inputs and 16 channel outputs
Max Capacity 128 zones by cascaded 8 units together
Call Station Input Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced
Input Line 1-16: 10kΩ, 330mV, unbalanced RCA input.EMC1: 10kΩ, 330mV, unbalanced
Output Line 1-16: 10kΩ, 330mV, unbalanced RCA output ,EMC1: 10kΩ, 0.775mV, 0dB, unbalanced
Alarm Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact
Display 128×64 LCD display in English
Frequency Response 60-16KHz (±3dB)
Control 16 zone output volume controls Menu buttons: up, enter & down ID dip switch
Master or slave dip switch
Protection AC fuse 0.5A, 1PCS
Power Consumption 20W
Power Supply AC 230V or 110V, 50-60Hz
Dimension 484(W)×390(D)×133(H)mm
Net Weight 7.1kg
Packaging 520(W)×455(D)×185(H)mm
Gross Weight 8.5kg


public adress system full set Audio Matrix Controller for Public Address System 0public adress system full set Audio Matrix Controller for Public Address System 1public adress system full set Audio Matrix Controller for Public Address System 2public adress system full set Audio Matrix Controller for Public Address System 3

exihibition

 public adress system full set Audio Matrix Controller for Public Address System 4
