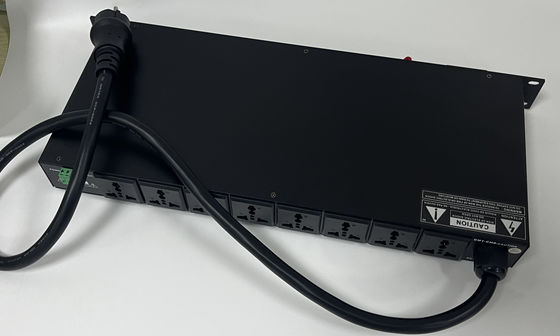

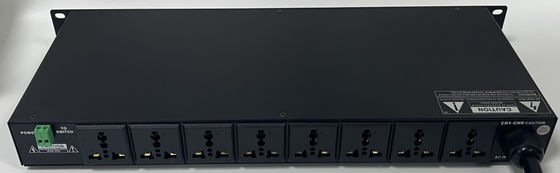

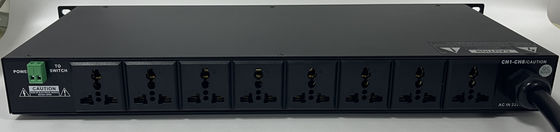

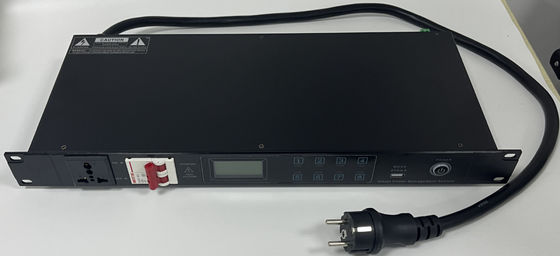

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer
25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer

Large Image :  25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE, RoHS & ISO9001
Model Number: FTD-8PS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/month
Contact Now

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer

Description
Description: Power Sequence Controller Support European, British And Chinese Power Plug 8 Channel Power Sequencer Power Consumption: 25W
Total Output Current: 30A, 6,000W Each Channel Output Current: 10A, 750W
Dimension: 425(W)×265(D)×44(H)mm Weight: 3.42kg
High Light:

25W Power Sequence Controller

,

8 Channel Power Sequence Controller

Power Sequence Controller Support European, British And Chinese Power Plug 8 Channel Power Sequencer





Features



1.19" rack mount power sequencer for low voltage system and PA sound system
2.8 channel power sequencer to manual or auto power control the amplifier
3.By using this programmable power sequencer to power on/off the amplifier in sequence to avoid high current to damage the amplifier or the power supply system
4.The interval time is 1.5 seconds between 2 channel actions
5.With universal power socket compatible for European, British and Chinese power plug
6.Each channel with working status on front panel for monitor use
7.Maximum loading capacity is 6,000 watts for total 8 channels
8.Each channel maximum output current is 10A
9.Total 8 channel maximum output current is 30A
10.With remote power control terminal open circuit to power on and short circuit to power off this unit
11.AC 115V or 230W power operation, 50-60Hz





Specification



Model
FTD-8PS
Description
8 Channel Power Sequencer
Power Consumption
25W
Total Output Current
30A, 6,000W
Each Channel Output Current
10A, 750W
Interval Time
1.5 second
Indicators
8 channel working status on front panel
Power Socket
Multi-functional socket European, British and Chinese power plug
Remote Power Control
Remote power control terminal open circuit to power on and short circuit to power off this unit
Dimension
425(W)×265(D)×44(H)mm
Weight
3.42kg
Warranty
3 years





25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 025W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 1







Exhibition


25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 2

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 3





Certifications


25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 4

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 5

25W Power Sequence Controller Support British And Chinese Power Plug 8 Channel Power Sequencer 6





FAQ



1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
