Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms

Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms
Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms

Large Image :  Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE，ROHS
Model Number: FDP-8350
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $ 473~478
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms

Description
Description: Eight Channel Class-D Amplifier Technology: Class-D
Max Output: 57V Crosstalk: >75dB
Dimension: 484(W)*430(D)*44(H)mm Weight: 10.9kg
High Light:

8ohms Pro Audio Amplifier

,

Class D 8ch amplifier

,

rms power amp 8×350W

Class-D Professional Class D Power Amplifier System





Product Description
Model
FDP-8350
Description
Eight Channel Class-D Amplifier
Technology
Class-D
RMS Power @ 8 Ohm Stereo
8×350 Watt
RMS Power @ 4 Ohm Stereo
8×500 Watt
RMS Power @ 2 Ohm Stereo
8×750 Watt
Max Output
57V
Input Sensitivity
1V
Max Input Level
26dBu
Gain
34dB
THD
<0.5%
Crosstalk
>75dB
Frequency Response
20Hz~20KHz
Input Impedance
10K
Damping Parameter
>1000 (8Ω,20HZ~200HZ)
S/N Ratio
>105dB (20HZ~20KHZ)
Power Consumption
550VA (1/8 Max Output @4Ω)
Power Consumption
1100VA (1/4 Max Output @4Ω)
Connector
Input by Combo female, link by XLR female.
Efficiency
>85%
Power Supply
AC 220-240V or 115V, 50~60Hz
Dimension
484(W)*430(D)*44(H)mm
Weight
10.9kg

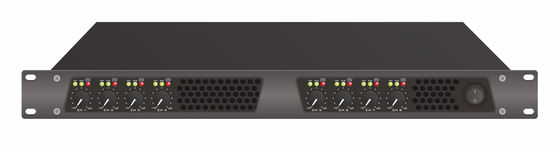

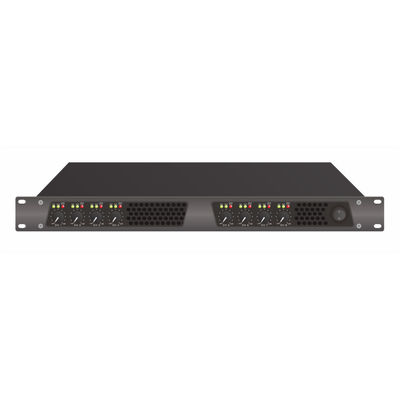

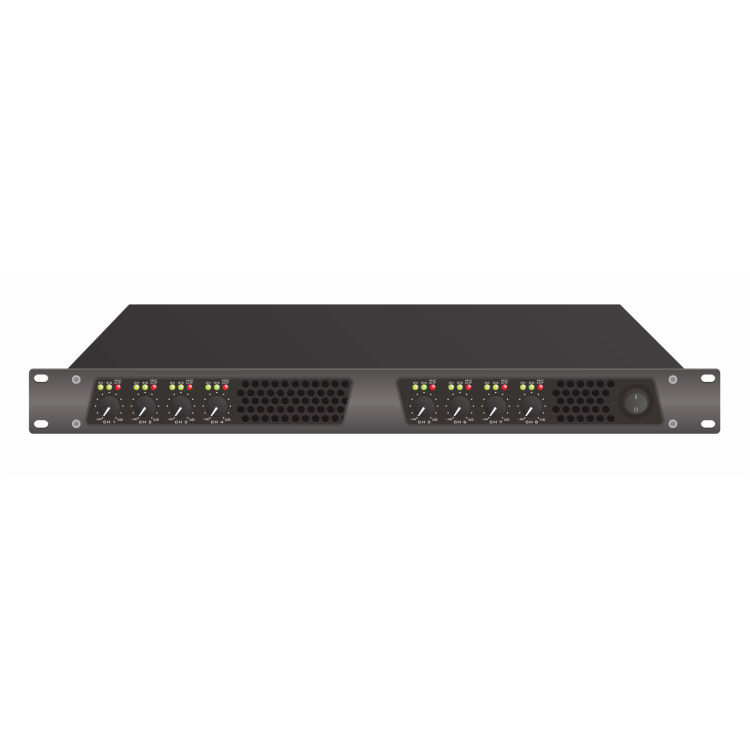

8CH Professional power amplifier FDP-8350 8×350W 8ohms

The FTD 8 channel class-d amplifier FDP-8400 is designed of switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans. The eight channel class-D amplifier is of 19” rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The rated power output of this amplifier is 8×500W, so it is ideal for meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.

Class D 8ch Pro Audio Amplifier RMS Power Amp 8×350W 8ohms 0

Product usage introduction

Robust performance range eight channel class-D power amplifier. Ideal for club, bar, restaurant & worship building sound system. Switching power technology digital Class-D level power amplifier. Green technology amplifier by 85% efficiency of less power consumption. Higher power output, less heat generation and longer life span. With PWM special power circuit to ensure excellent cooling system. 19” universal rack mount type in 1U height.
Description of product use effect



FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
