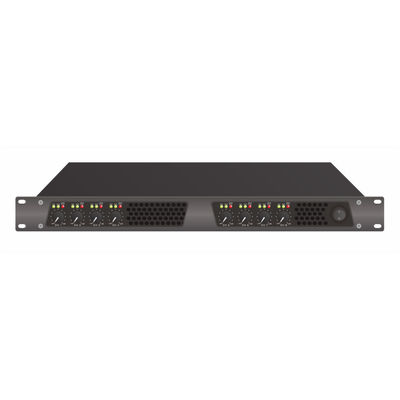

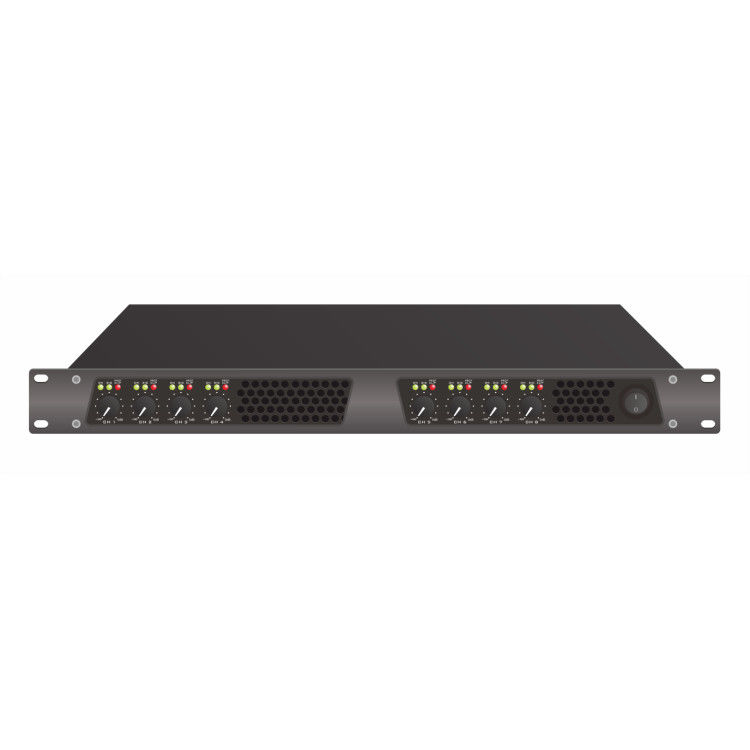

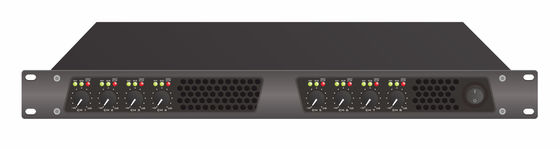

FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS

FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS
FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS

Large Image :  FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE，ROHS
Model Number: FDP-8400
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $ 473~478
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS

Description
Model Number: FDP-8400 The Body Material: Metal
Color: Black Dimension: 484(W)*430(D)*44(H)mm
Format: 600Ω Weight: 11KG
High Light:

1u Pro Audio Amplifier

,

8 channel dsp amplifier ROHS

,

8 channel audio amplifier FDP-8400

8 Channel Class D 1u Professional Power Amplifiers





Product Description
Model
FDP-8350
Description
Eight Channel Class-D Amplifier
Technology
Class-D
RMS Power @ 8 Ohm Stereo
8×350 Watt
RMS Power @ 4 Ohm Stereo
8×500 Watt
RMS Power @ 2 Ohm Stereo
8×750 Watt
Max Output
57V
Input Sensitivity
1V
Max Input Level
26dBu
Gain
34dB
THD
<0.5%
Crosstalk
>75dB
Frequency Response
20Hz~20KHz
Input Impedance
10K
Damping Parameter
>1000 (8Ω,20HZ~200HZ)
S/N Ratio
>105dB (20HZ~20KHZ)
Power Consumption
550VA (1/8 Max Output @4Ω)
Power Consumption
1100VA (1/4 Max Output @4Ω)
Connector
Input by Combo female, link by XLR female.
Efficiency
>85%
Power Supply
AC 220-240V or 115V, 50~60Hz
Dimension
484(W)*430(D)*44(H)mm
Weight
10.9kg

FDP-8400 1u Pro Audio Amplifier 8 Channel DSP Amplifier ROHS 0



8CH Professional power amplifier FDP-8350 8×350W 8ohms

The FTD 8 channel class-d amplifier FDP-8400 is designed of switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans. The eight channel class-D amplifier is of 19” rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The rated power output of this amplifier is 8×500W, so it is ideal for meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.


Product usage introduction



Support power output of 8ohms 8×350 Watt in stereo mode. 8 signal input connections by balanced jack. Loudspeaker outputs are connected using Speakon. Complete protection include clip, high temp, overload and short circuit. With four fans for cooling down the internal temperature. Visual indicator of output level meter, bridge, power, protection and clip.





Quick Details
Place of Origin:
Guangzhou
Brand Name:
FTD
Model Number:
FDP-8400
Warranty:
3months-1year
Customized:
Yes
Dimension:
484(W)*430(D)*44(H)mm
Power Supply Mode:
Other
Storage:
830W
SNR:
≥80dB
Output Power:
500W
Connection Type:
Other
Shell Material:
Aluminum
Format:
600Ω
The body material:
Metal
radio function:
Yes
Color:
black
Weight:
11KG
Size:
484mm*430mm*44mm
Certification:
CE,ROHS




Tag:

Pro Audio Amplifier,

Pa Power Amplifiers,

Professional Power Amplifier
