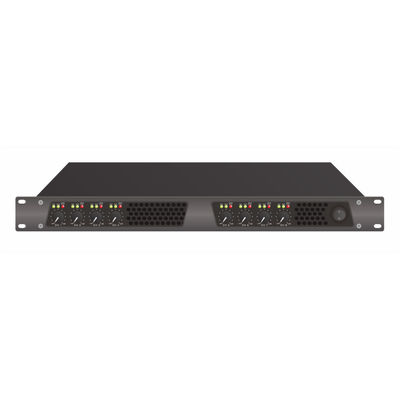

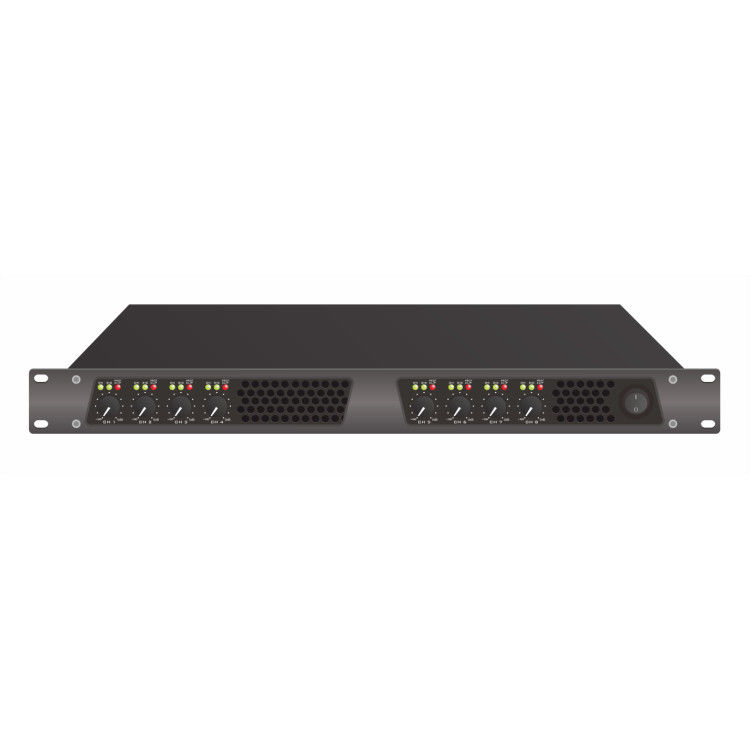

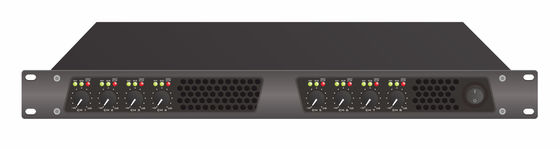

Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS

Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS
Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS

Large Image :  Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE,ROHS
Model Number: FDP-8400
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $ 473~478
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month

Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS

Description
Technology: Class-D Max Output: 57V
Max Input Level: 26dBu THD: <0.5%
Efficiency: >85% Weight: 10.9kg
High Light:

8ohms 8 channel class d amplifier

,

Class D Power Amplifier 8×350W

,

8 channel power amplifier ROHS

8 Channel Professional Class D Power Amplifier Premium System





Product Description
Model
FDP-8350
Description
Eight Channel Class-D Amplifier
Technology
Class-D
RMS Power @ 8 Ohm Stereo
8×350 Watt
RMS Power @ 4 Ohm Stereo
8×500 Watt
RMS Power @ 2 Ohm Stereo
8×750 Watt
Max Output
57V
Input Sensitivity
1V
Max Input Level
26dBu
Gain
34dB
THD
<0.5%
Crosstalk
>75dB
Frequency Response
20Hz~20KHz
Input Impedance
10K
Damping Parameter
>1000 (8Ω,20HZ~200HZ)
S/N Ratio
>105dB (20HZ~20KHZ)
Power Consumption
550VA (1/8 Max Output @4Ω)
Power Consumption
1100VA (1/4 Max Output @4Ω)
Connector
Input by Combo female, link by XLR female.
Efficiency
>85%
Power Supply
AC 220-240V or 115V, 50~60Hz
Dimension
484(W)*430(D)*44(H)mm
Weight
10.9kg



8CH Professional power amplifier FDP-8350 8×350W 8ohms

The FTD 8 channel class-d amplifier FDP-8400 is designed of switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans. The eight channel class-D amplifier is of 19” rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The rated power output of this amplifier is 8×500W, so it is ideal for meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.

Professional 8 Channel Class D Power Amplifier 8×350W 8ohms ROHS 0



Company Introduction
Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years’ experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!


FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
