Product Details:
|
| Material: | UV Protected ABS Enclosure In Green | Communication: | AUX, Audio Line |
|---|---|---|---|
| Frequency Range: | 20Hz-20KHz | Type: | Active |
| Special Feature: | Wireless | Weight: | 5.5kg |
| High Light: | 500W Public Address System,Single Channel 500w power amplifier,class d power amplifier 1U |
||
Specification:

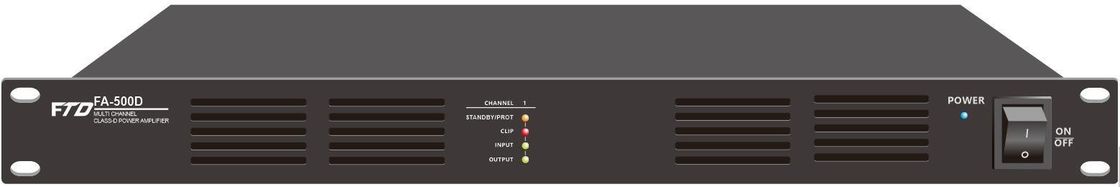

| Model | FA-120D | FA-240D | FA-350D | FA-500D |
| Description | Class-D Single Channel Power Amplifier | |||
| Rated Power Output | 120W | 240W | 350W | 500W |
| Speaker Output | 4-16Ω & 100V | |||
| Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) |
|||
| Input | 0.775V, 0dBu, balanced phoenix connector | |||
| Input Impedance | 10KΩ | |||
| THD | <0.1% (1KHz/-3dBv, 100W) | |||
| S/N Ratio | >80dB | |||
| Crosstalk | >60dB, 1KHz, Max output | |||
| Power Consumption | 200W | 300W | 420W | 550W |
| Power Supply | AC input switchable between 115V & 230V, 50-60Hz 24V DC input as option at order request. |
|||
| Dimension | 482(W)x420(D)x44(H) mm | |||
| Weight | 4.2kg | 4.5kg | 5KG | 5.5KG |
Features:
Switching power technology digital power amplifier
Class-D PA power amplifier of minimum power consumption
Less rack space and less heat generation
Single channel power amplifier into 19” rack mount unit
Rated power output at 350W
Speaker outputs 4-16Ω/100V
Balanced XLR input by phoenix connector
Each input with separate gain control.
Each channel with high-cut filter.
Built-in auto standby feature to save power consumption
Separate indicators for protection, clip, input and output
Complete short circuit, overload, high temp, clip and DC protection
Wide AC input switchable between 115V and 230V
24V DC input as option at order request.
