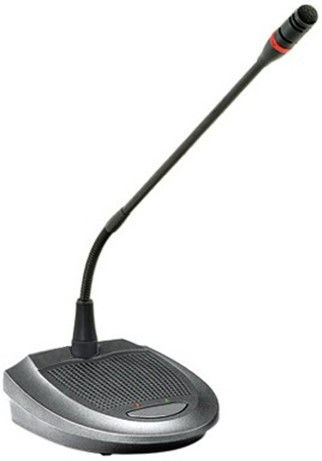

24VDC Audio Wired Conference System Table Microphone Speaker With 3.5mm Earphone Input

Features



• The delegate unit is specially designed for discussion system.
• Cost-effective and excellent voice restoration system.
• Ideal for board room, meeting room, conference room in hotel, office & government.
• System capacity is 60 units and max 250 units by cascaded more extension controller.
• Tabletop deign microphone type for easy mobile installation.
• Chairman unit with priority over delegate unit when speech.
• Delegate unit with one microphone on button.
• Delegate unit speech could be turn off by the chairman unit.
• Support multiple discussion modes: free, first in first out, and limited discussion.
• Support free discussion quantity of 1, 2, 3 and 5.
• Built-in 3W hi-fi monitor speaker, which will be automatically off for a while when microphone is on.
• With one 3.5mm earphone input.
• With monitor speaker volume control.
• With round ring indicator will be light on when microphone on.
• Gooseneck length of 390mm, other length could be customized without addition cost.
• Gooseneck color of black, silver could be optional.
• Voting, simultaneous interpretation and auto video tracking function are optional functions.



Specification



Model	FCS-602
Description	Conference System Delegate Unit
System Capacity	60 units and 250 units by cascaded more extension controller
Connection Way	Bus way, each microphone unit connected to the main line
Power Supply	DC24V by controller
Voice Pickup Distance	15-50cm
Sensitivity	-44dB±2dB
Frequency Response	40Hz-16KHz
Monitor	Built-in 3W monitor speaker with output volume control
Control	One 3.5mm earphone input
Indicator	Red round ring indicator light on when microphone on
Button	One microphone on in black
Gooseneck Length	390mm
Finish	ABS in black
Cable	2 meters cable with T-shaped plug are included
Dimension	165(W)×135(D)×60(H)mm
Weight	0.8kg
