Product Details:
|
| Power Supply: | AC220V Or 115V, 50-60Hz | Power Consumption: | 500W |
|---|---|---|---|
| THD: | <0.05% | S/N Ratio: | >75dB |
| Output Impedance: | 47KΩ | Weight: | 12.7kg |
| High Light: | Stereo Power Amplifier AC115V,AC115V Stereo Power Amplifier,pa system master controller 50Hz |
||

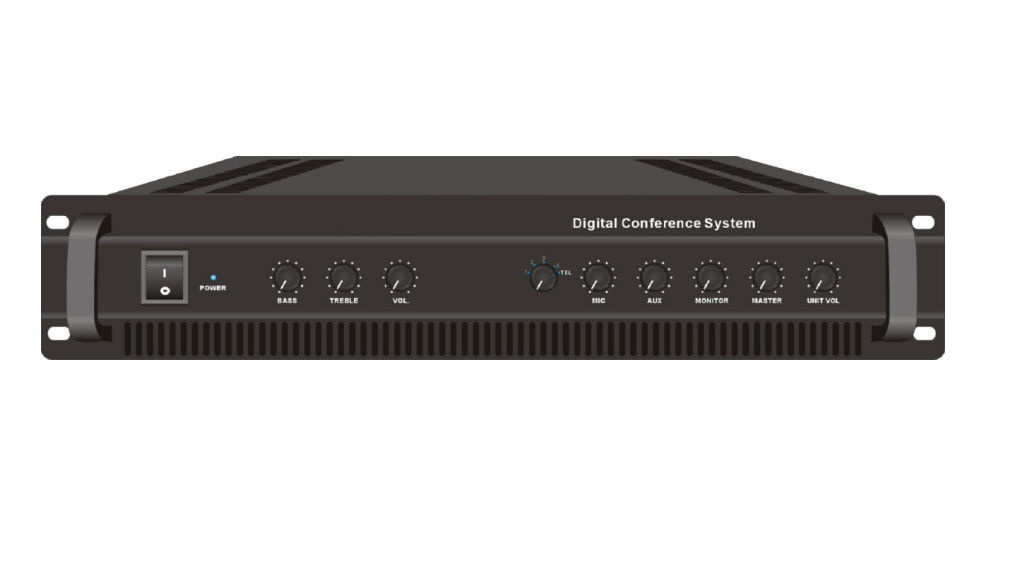

The conference system controller is specially designed for discussion system.
Cost-effective and excellent voice restoration system.
Ideal use in board room, meeting room, conference room in hotel, office and government.
The capacity of system is 60 units and max 250 units by cascaded more extension controller.
Voting, simultaneous interpretation and auto video tracking function are optional functions.
Support multiple discussion modes: free, first in first out, and limited discussion.
Amplifier with overload, high temp and short-circuit protection.
Built-in 1W monitor speaker to monitor the system performance.
With one aux output, one line output and TEL input for telephone conference system.
With REC output for recording system like DVR or recorder.
With Effecter input and output for EQ, mixer and DSP.
With one RS232 communication port for central control system
AUX and AUX output for extra sound amplification equipments.
Bass, treble, MIC, AUX, Monitor and Master volume control.
Included with one 13 meters cable with 8 PIN plug.
| Model | FC-600 |
| Description | Conference System Controller |
| System Capacity | 60 units and 250 units by cascaded more extension controller |
| Connection Way | Bus way, each microphone unit connected to the main line |
| Power Supply | AC220V or 115V, 50-60Hz |
| Power Consumption | 500W |
| THD | <0.05% |
| S/N Ratio | >75dB |
| Frequency Response | 100Hz-18KHz |
| Input |
One aux, one mic, one effecter, one RJ45 port for telephone input or video controller and one RS232 port for central control system |
| Output |
One aux, one REC and one balanced XLR mixed line output, two pairs low impedance speaker outputs |
| Output Impedance | 47KΩ |
| Communication Port | 4 DIN ports to connect with delegate units by 8 PIN connector |
| Dimension | 488(W)×360(D)×84(H)mm |
| Weight | 12.7kg |
