IR Wireless 12 Channel Transmitter

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

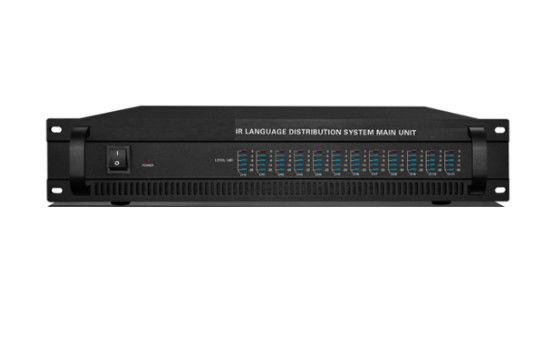

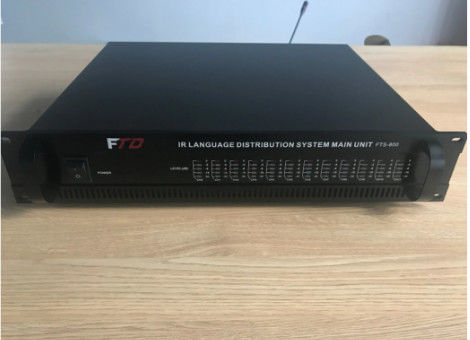

IR Wireless 12 Channel Transmitter

IR Wireless 12 Channel Transmitter
IR Wireless 12 Channel Transmitter IR Wireless 12 Channel Transmitter

Large Image :  IR Wireless 12 Channel Transmitter

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FTS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD478.06~485.06
Packaging Details: 485(W)*355(D)*88(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

IR Wireless 12 Channel Transmitter

Description
Description: IR Wireless 12 Channel Transmitter Frequency Response: 100-14KHz
S/N Ratio: >75dB AGC Range: 30db
Dimension: 485(W)*355(D)*88(H)mm Warranty: 3years
Weight: 7.0Kg Power Consumption: 40w





Feature:

  • Head of language distribution and simultaneous interpretation system.
  • 12 languages (1 ground and 11 international) simultaneous translation and distribution system.
  • Ideal for international summit meeting, religious meeting and hotel rental use.
  • This transmitter will receive 12 different voice inputs then generate the infrared wireless signal to be radiated by the IR radiator, while the attendant with IR receiver could receive different translated language by selecting different receiving channels.
  • Stable strong signal for accurate wireless infrared transmission system to prevent interference.
  • Suitable for indoor and outdoor moderate and big conference hall use.
  • Automatic output level control technology (ALC).
  • No interference from lighting system and other wireless communication system.
  • Advanced daisy chain connection to save cable and layout cost.
  • Elegant and ergonomic design to integrate with the architecture application.
  • 12 channel interpretation inputs and outputs.
  • Each channel with REC output for recording system like DVR or recorder.
  • Test function to ensure the well installation.
  • Separate 12 channel output level display for visual monitor use.

 Specifications:
Model FTS-800
Description IR Wireless 12 Channel Transmitter
Modulation Way FM modulation
Frequency Synthesis Digital PLL
Frequency Band 1.7-4.0MHz
Frequency Response 100-14KHz
Frequency Stability 100ppm
Pre-emphasis 75μSec.
Distortion <0.5%
Channel Separation >70dB
RF Output Level 700mV
RF Output Impedance 50Ω
Input Impedance 18KΩ
Max Input Level 2V
AGC Range 30dB
S/N Ratio >75dB
Power Consumption 40W
Power Supply AC220V or 115V, 50-60Hz
Dimension 485(W)×355(D)×88(H)mm
Weight 7.0kg
  • IR Wireless 12 Channel Transmitter 0IR Wireless 12 Channel Transmitter 1IR Wireless 12 Channel Transmitter 2IR Wireless 12 Channel Transmitter 3IR Wireless 12 Channel Transmitter 4


FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.

  •
  •
