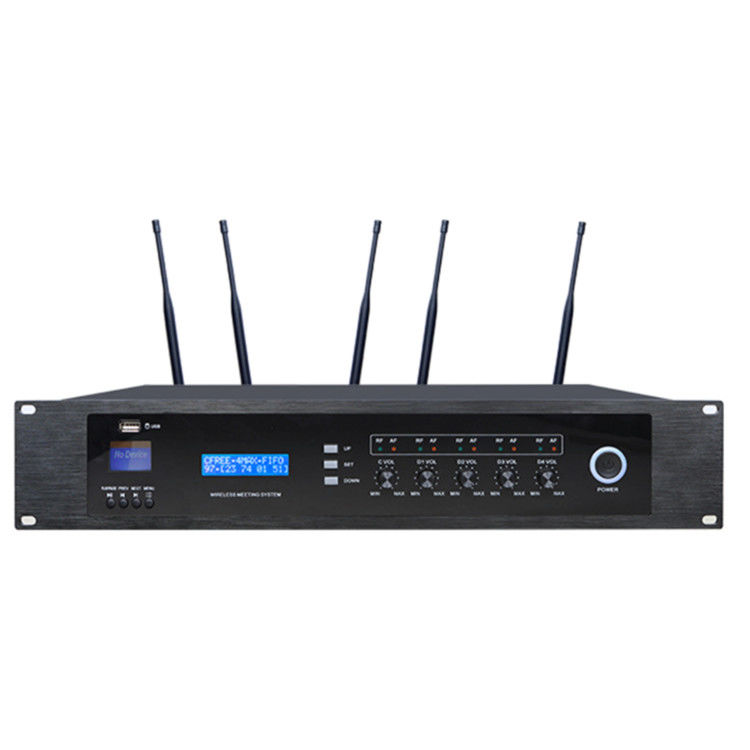

UHF Wireless Conference System Master Controller (With Recording)

UHF Wireless Conference System Master Controller (With Recording)
UHF Wireless Conference System Master Controller (With Recording) UHF Wireless Conference System Master Controller (With Recording) UHF Wireless Conference System Master Controller (With Recording) UHF Wireless Conference System Master Controller (With Recording) UHF Wireless Conference System Master Controller (With Recording)

Large Image :  UHF Wireless Conference System Master Controller (With Recording)

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: WCS-400
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD420~430
Packaging Details: 485(W) *355(D) *100(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

UHF Wireless Conference System Master Controller (With Recording)

Description
Description: UHF Wireless Conference System Master Controller Frequency Response: 60Hz-16KHz
S/N Ratio: >105dB THD: <0.5%
Dimension: 485(W) *355(D) *100(H)mm Warranty: 3years
Weight: 7.2Kg Communication Distance: 300 Meters





Feature:

  • Simple operation UHF wireless conference system.
  • Minimum cable wiring to save cable layout cost.
  • Minimum cable connection ideal for rental use or portable conference system.
  • Basic discussion conference system or audio conference system.
  • Economy wireless conference system and meeting system.
  • System capacity of 256 delegate units.

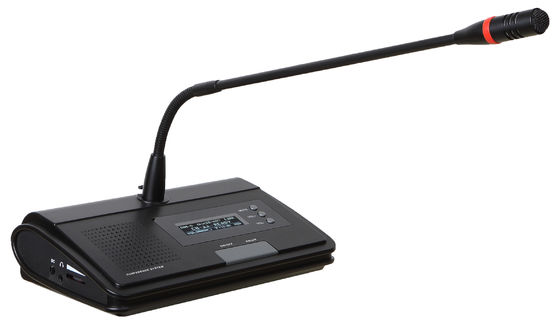

  • Chairman unit with priority over delegate units.
  • Chairman unit and delegate unit built-in rechargeable LIPO battery.
  • Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes.
  • 5 delegate microphones can be turned on at the same time.
  • Microphones can be operated on the built-in rechargeable lithium battery.
  • Battery working time of 16 hours and standby time of 60 hours.
  • Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference.
  • Built-in feedback suppressor to decrease feedback and noise effectively.
  • Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function.
  • Operation distance up to 300 meters and coverage up to 4,000 Square meters.
  • Separate volume control for 5 channels on master controller front panel.
  • Separate output level meter for each 5 channels for direct visual monitoring.
  • Optional v auto-track video tracking function.
  • UHF wireless conference system master control is powered by DC12V.
  • Master control With unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system.
  • Video tracking function need external equipment and cameras.

 Specifications:
Model WCS-400
Description UHF Wireless Conference System Master Controller
Audio Transmission Way UHF wireless one way transmission by oscillation PLL technology
Channel Qty 5 channels (one for chairman Mic and four for delegate Mics)
Frequency Range 740MHz-790MHz @ ±10PPM stability
Modulation Mode FM
Receive Sensitivity -100dBM
Output Level Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV
Frequency Response 60Hz-16KHz
S N Ratio >105dB
THD <0.5%
Communication Distance 300 meters
Control Transmission Way UHF wireless two way transmission
Channel Qty 16
Frequency Range 740MHz-790MHz
Modulation Mode FSK
Receive Sensitivity -100dBM
Transmitted Power +6dBm (adjustable)
Frequency Deviation <0.002
Communication Rate 100KBPS
Signal Coverage 4,000 Square meters
Mechanical Power Supply DC12V-15V, >=1A
Power Consumption < 7W
Operation Temperature -20ºC to +55ºC
Dimension 485(W) x 355(D) x 100(H)mm
Weight 7.2 kg
  • UHF Wireless Conference System Master Controller (With Recording) 0UHF Wireless Conference System Master Controller (With Recording) 1UHF Wireless Conference System Master Controller (With Recording) 2UHF Wireless Conference System Master Controller (With Recording) 3UHF Wireless Conference System Master Controller (With Recording) 4


FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.

  •
  •
