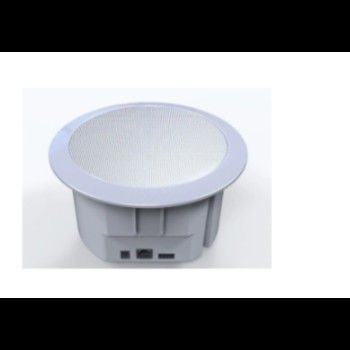

IP POE Powered Ceiling Speaker

IP POE Powered Ceiling Speaker
IP POE Powered Ceiling Speaker IP POE Powered Ceiling Speaker

Large Image :  IP POE Powered Ceiling Speaker

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FIP-306P
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD126.5~130.5
Packaging Details: 200(Diameter)*100(Depth)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

IP POE Powered Ceiling Speaker

Description
Description: IP Based POE Ceiling Speaker Frequency Response: ≤10W
T.H.D.: <=0.1% Network I/F: 10/100Mbps
Dimension: 200(Diameter)*100(Depth)mm Warranty: 3years
Weight: 1.2kg Cutout Size: 165mm




Feature:


  • The IP POE Powered Ceiling Speaker is the latest in IP technology. This Power over Ethernet (Compatible with both IEEE 802.3af & IEEE 802.3at) VoIP mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast.

    The POE powered ceiling speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.

    The POE powered ceiling speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External DC12V connector is also equipped in this POE speaker for standby power supply use.

    The POE ceiling speaker is designed with 6" full range ceiling speaker with 2×6W class-D amplifier, so a passive ceiling speaker is possible to be powered by this POE speaker.

    There is one Emergency Call Button input to connect with one external emergency button, by pressing the button, the remote call station FIP-300TM will be reminded by its ID or pre-set room number with ring bell. The remote call station IP-600RM enable to make announcement to this room by answer this call. There is emergency light output once the emergency button is pressed.

    Features: Support with existing POE switch network system Compatible with both IEEE 802.3af & IEEE 802.3at IP based POE powered 6W ceiling speaker Single network cable for control, signal and power supply Same POE speakers enable to be several group or zone defined Different music or voice message simultaneously broadcasted through different POE speakers. Paging prioritization and background music system Network adjustable speaker volume Can driver one external passive speaker for more volume Closed contact input for emergency button or third party integration Closed contact output for emergency light or third party integration DC12V power supply input as standby use



Model FIP-306P
Description IP Based POE Ceiling Speaker
Power Output 6 Watts RMS & 10W Watts Max (1KHz@-3dB)
Built-in Amplifier 2×6 Watts RMS & 2×10W Watts Max
Network I/F 10/100Mbps
Protocol ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast)
Audio Format MP3/MP2
Audio Quality 16digit stereo CD level
Sampling Rate 8K~48K
Bit Rate 8K~512Kbps
Sensitivity 92dB/1W/1M
S/N Ratio >=85dB
THD <=0.1%
Frequency Response 100-18KHz(±3dB)
Connector One RJ45 port for existing LAN/WAN & internet
One closed contact input for emergency button, 0V, short circuit contact
One closed contact output for emergency light, 0V, short circuit contact
One DC12V battery backup input
Power Input POE 802.3af or POE 802.3at & DC 12V
Operation Temp -30 to 55ºC
Dimension 200(Diameter)×100(Depth)mm
Cutout Size 165mm
Weight 1.2kg
  • IP POE Powered Ceiling Speaker 0IP POE Powered Ceiling Speaker 1IP POE Powered Ceiling Speaker 2IP POE Powered Ceiling Speaker 3IP POE Powered Ceiling Speaker 4



FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.

  •
  •
