Feature:


• SYSTEM FEATURES:

  HD: 1080P/60 Low latency: Less than 200ms Low bandwidth: Ultra-low bandwidth, 1M for 1080P HD Conference Capacity: one machine 16 users, can be seamlessly upgraded to 120 users



  MECHANICAL SPECIFICATIONS:

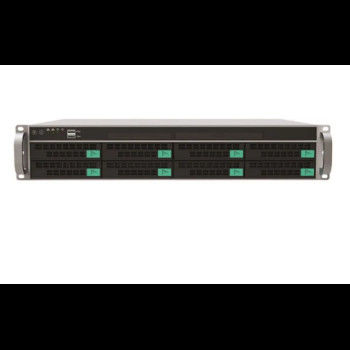

  Model: FVC-800MUC Description: HD Video Conference System MCU Dimensions ( LxWxH ): 675mm x 430mm x 88mm Weight: 25Kg Operating voltage: 100VAC ~ 240VAC Operating frequency: 50Hz ~ 60Hz Maximum power consumption: less than 500W Environment Temp: 10 ~ 35 (working condition) -40 ~ 55 (non- operating) Relative Humidity: 10% ~ 80% (working) 0% ~ 95% (non- operating) Ambient noise: less than 50dB

  MAINTENANCE MANAGEMENT:

  WEB management operation in English & Chinese version Device management

  HD VIDEO CONFERENCE SYSTEM

  User management Conference management Supports Telnet, ssh remote maintenance Zone management according to user and region characteristics Support large-scale terminal membership and management Software upgrade: local & remote upgrade IP network diagnosis: PING, packet loss, delay, jitter detection Status indication of network packet loss Supports event logging Support configuration import and export Restore factory settings

  VIDEO CONFERENCE FEATURES:

  Support multi-screen, multi-screen layouts, up to 16pictures per screen Supports split screen automatically Director/ Chairman conference mode MCU convene mode/Meeting room mode/Broadcast mode/Free mode Supports voice activation function Support breakpoint re-invitation function Support remote control HD camera, backlight settings With dual 100M/1000M network interface Line adapted to DDN, ISDN, ATM, SDH, VPN, dedicated satellite, ADSL, etc Span the router and firewall to ensure security, support dual-network interface Supports H.264 SVC, anti network error code, no interruption to the meeting within a 5% packet loss Voice is with priority, support QOS strategy Support H235 signaling encryption, AES media stream encryption Conference access /Conference control /Administrator password NETWORK FEATURES:

  AUDIO FEATURES:

  Audio codec: G.711A/U, G.722, G.7221, G.722.1.C, G.723, iLBC, AAC, etc Lip Sync, Multi-CH mixer, Echo Cancellation, Auto Gain &Noise cancellation

  COMMUNICATION PROTOCOL: Multimedia Framework Agreement ITU-T H.323, IETF SIP

  VIDEO FEATURES:

  Support: H.264 (highest: High profile) Video Resolution Rate: QCIF, CIF, 4CIF, 480P, D1, 720P, 1080P24, 1080P25, 1080P30,1080P50, 1080P60 Support: mixed -speed, mixed video formats, mixed protocol conference Static Graphic: XGA, HD720P, 640 x 480, 1280 x 1024, 1080P (1-60 frames), English subtitles Supports H.239 dual stream digital technology, primary and secondary streams can reach resolution 1080P60 Bandwidth: 1Mbps for 1080p video conference available


•

FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
