FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker

FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker
FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker
FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker

Large Image :  FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FIP-502
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD254.58~260.58
Packaging Details: 255(W)*115(D)*50(H)mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

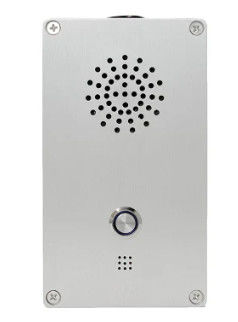

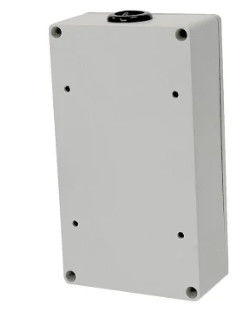

FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker

Description
Description: IP Network Classic Intercom Panel Power Supply: DC 12V
Power Consumption: 5W Network Protocol: TCP, UDP, ARP, ICMP, IGMP
Frequency Response (-10dB): 20Hz-20KHz Dimension: 255(W)*115(D)*50(H)mm
Warranty: 3years




Feature:


  • .Ideal solution for outdoor or indoor two way communication system in park, school, factory, train station and airport.
    2.IP network intercom system very suitable for big scale installation system whether by CAT5 cable or fiber optical cable.
    3.Aluminum finish with damage proof screw fixing up.
    4.Both surface and embedded mounting ways with supplied mounting box.
    5.Classic range high quality IP intercom panel.
    6.Intercom panel built-in speaker and microphone.
    7.Full duplex two way communication system.
    8.It can start the communication to the call station by pressing the call button, the call station will be reminded with ring call and indicator as which intercom panel from where is calling. The call will be automatically transferred to next call station once busy, no answer or fault occurred.
    9.With one contact output and contact input for third party communication.
    10.Non dedicated network is needed, the system could be easily built-up over exiting LAN/WAN network.
    11.Embedded server Lynux technology with two ARM and DSP high speech chip.
    12.Max support 64,000 call stations working at the same time.
    13.Start time less than 0.1 second.
    14.Network data delay of less than 100 milliseconds.
    15.Waterproof rate of IP54.
    16.It is powered by DC12V, the power adapter is included.

  •

specifition:

Model FIT-502
Description IP Network Classic Intercom Panel
Mounting Support both surface or embedded by supplied mounting box
Power Supply DC 12V
Power Consumption 5W
Network Protocol TCP, UDP, ARP, ICMP, IGMP
Network Speed 10/100Mbps
Audio Sampling 8KHz-44.1KHz, 16 bits
Transmission Rate 8Kbps to 320Kbps
S/N Ratio ≥90dB
Frequency Response 20Hz-20KHz
Data Delay 100 milliseconds
Waterproof Rate IP54

Connector
One line output & one RJ45 port for LAN, one contact input and one
contact output
Dimensions 255(W)×115(D)×50(H)mm




  • FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker 0FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker 1FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker 2FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker 3FIT-502 IP Network Classic Outdoor/Indoor Two Way Communication PA System Speaker 4



FAQ:
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.

  •
  •
