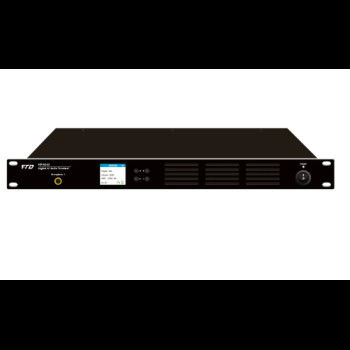

19 Inch Rack-Mount IP Network Amplifier

19 Inch Rack-Mount IP Network Amplifier
19 Inch Rack-Mount IP Network Amplifier

Large Image :  19 Inch Rack-Mount IP Network Amplifier

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Model Number: FIP-9240
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: USD286~290
Packaging Details: 484*420*44mm
Delivery Time: 5-8work days
Supply Ability: 1000cottons

19 Inch Rack-Mount IP Network Amplifier

Description
Description: IP-Network Rated Power Output: 240W
Protocol Support: TCP/IP, UDP, IGMP (group Broadcasting) Transmit Speed: 10/100Mbps
Audio Format: 16 Digit Stereo CD Tone Frequency Response (-10dB): 20Hz~16KHz
Dimension: 484*420*44mm Warranty: 3years

19 Inch Rack-Mount IP Network Amplifier 0

Feature:

  • Description:

    The IP Amplifier, which build in the IP network audio decoder/IP streaming and 100V amplifier. The IP amplifier is of 19" rack mount design, it is built-in amplifier rated output at 120W. The IP network technology also allow this IP network amplifier could be installed anywhere even near to the speaker to save cable wiring from control room to each zone. The advantages of the network audio system are: Super distance audio transmission, multiple channel audio matrix, simultaneous multiple programs and non-dedicated network wiring.


    Feature:

    1U height 19 inch rack size power amplifier
    IP amplifier with audio decoder.
    Build in LCD screen
    Simple system configuration by system server, paging microphone & IP network amplifier to set up IP audio system. Huge system capacity of 6,000 zones paging and multiple BGM system.
    IP based public address system over LAN/WAN or Internet. Minimum cable connection by using existing network framework. Non-dedicated network audio system solution.
    Economy network PA system for multiple room and multiple program applications. Ideal for school, office, restaurant and fitness center IP PA sound system.
    IP network decoder built-in 100V Amplifier.
    Build in speaker line supervision
    Rated power output of 120W.
    Two microphone inputs and two line inputs and one line output.
    Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP amplifier. Remote volume control and program control from server room.
    Timely broadcast ring bell or pre-recorded message to pre-set zones.
    IP remote paging microphone enables to talk to each speaker zone or amplifier over network.



Model FIP-9240
Description IP Amplifier
Rated Power Output 240W
Protocol Support TCP/IP, UDP, IGMP (group broadcasting)
Transmit Speed 10/100Mbps
Audio Format 16 digit stereo CD tone
Frequency Response 20Hz~16KHz
THD ≤0.3%
S/N Ratio ≥85dB
Connector One RJ45 port, two mic inputs and two line input and one line output
Speaker Output 100V
Working Temperature -5ºC to +40ºC
Humidity 10% ~ 90%
Power Consumption 440W
Power Supply AC220V, 50-60Hz
Dimensions 484x420x44mm
Weight 7kg



  • 19 Inch Rack-Mount IP Network Amplifier 119 Inch Rack-Mount IP Network Amplifier 219 Inch Rack-Mount IP Network Amplifier 319 Inch Rack-Mount IP Network Amplifier 419 Inch Rack-Mount IP Network Amplifier 5
