Product Details:
|
Description: | Two Channel Power Amplifier | Rated Power Output: | 2*240W |
---|---|---|---|
Speaker Output: | 100V, 70V, 4-16Ω | Frequency Response: | 60-15KHz |
THD: | Less Than 0.5% At 1KHz, 1/3 Rated Power | S/N Ratio: | ≥85dB |
Power Supply: | AC230V Or 110V, 50-60Hz | Power Consumption: | 620W |
Dimension: | 484*366*88mm | Weight: | 13.8kg |
Warranty: | 5 Years | Input: | Unbalanced Two RCA Line Inputs |
High Light: | 2x240W PA Power Amplifier,15KHz PA Power Amplifier |

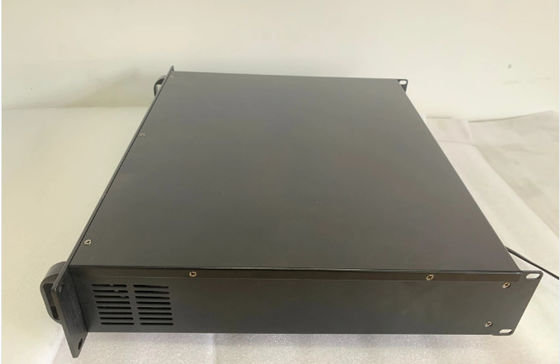

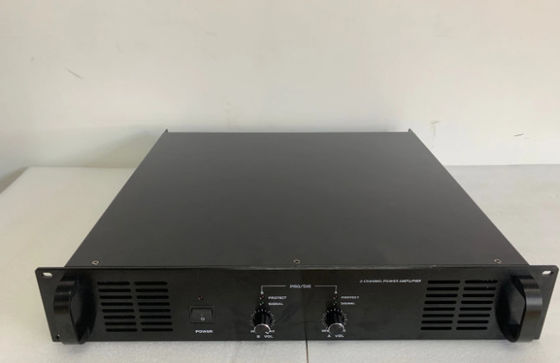

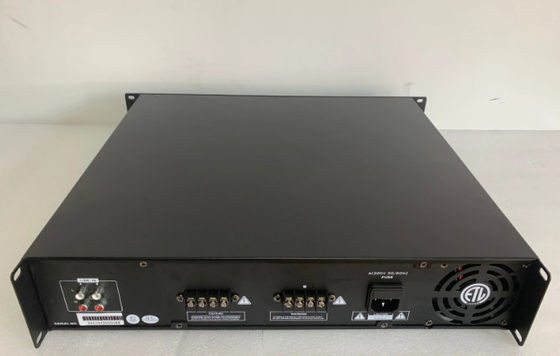

PA Power Amplifier 2*240W Amplifiers And Speakers Power Mixer Power Amplifier Professional 20000W
Description:
The range of public address system amplifiers are designed for general commercial and industrial public address applications. Rack mount design in 2U type, rated power of 2×240W by two channels, which provides a wide selection to meet different size sound system needs. Two unbalanced line inputs could direct input from audio sources or from pre amplifier & mixer. 70V, 100V and 4-16ohm speaker by two channel separate outputs are convenient for installation when selection different speaker matching, also could be taken as two separate zone for individual control. Two channel separate volume controls are included. Complete protection includes clip, short circuit, high temp and overload. Indicators for power, signal, clip, protection and temp.
Feature
Rack mount PA 100 Volt two channel power amplifier in 2U type
Rated power of 2×240W for dual zone public address system.
70V, 100V and 4-16 ohm two channel separate speaker outputs
Isolated transformer for human safety operation
Unbalanced two channel line inputs by RCA type.
Reliable protection of over heat, over load, clip & short circuit
Indications for power, signal, clip, protection and temp
DC 24V power supply backup input at request
