Product Details:
|
| Description: | 6×6 Matrix Mixer Amplifier With Mp3/FM/Blue Tooth | Rated Power: | 6*60W |
|---|---|---|---|
| Speaker Output: | 100V And 4-8 Ohms | Frequency Response: | 80-16KHz |
| THD: | <0.1% | S/N Ratio: | >70dB |
| Protection: | High Temp, Short Circuit, Clip & Overload Protection | Power Supply: | AC230V Or AC110V, 50-60Hz |
| Power Consumption: | 400W | Dimension: | 484(W)*320(D)*88(H)mm |
| Weight: | 14.5kg | Warranty: | 5years |

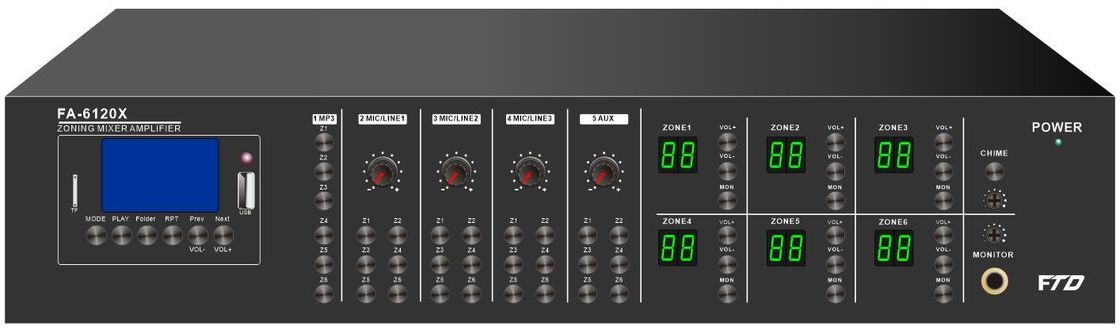

6×6 Matrix mixer amplifier with 6 x 60W, 6 x 120W outputs.
5 sources and EMC input matrix distributed to 6 speaker zones.
MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority.
6 channel mixer amplifier controller with audio sources, zone volume control .
Matrix amplifier with remote control panel and remote paging microphone.
6 remote control by CAT5 cable up to 200 meters to select program and control volume.
6 remote paging microphone by CAT5 cable up to 200 meters communication.
Different 6 zone of different music program and different volume output.
6 Zone speaker outputs of 100V or 4/8 Ohms speakers.
3 mic/line switchable inputs of balanced XLR with 48V phantom power.
1 aux input and an integral USB/SD/FM player and Bluetooth can be matrix switched to any of the 6 zones independently.
Mic 1 channel has a variable override and each microphone input has switchable phantom power.
6 zone remote paging microphone for paging & announcement system.
Designed for multi-room systems requiring different audio sources.
Integral USB/SD/FM audio player and remote control.
Internal Bluetooth receiver with mobile use.
100V or 4/8 Ohms operation for PA system and hi-fi both sound system.
6 independent output zones for multiple room sound system.
24V mute contacts to integrate with fire alarm system.
AC230V and 24V DC both operation system.
