Description:

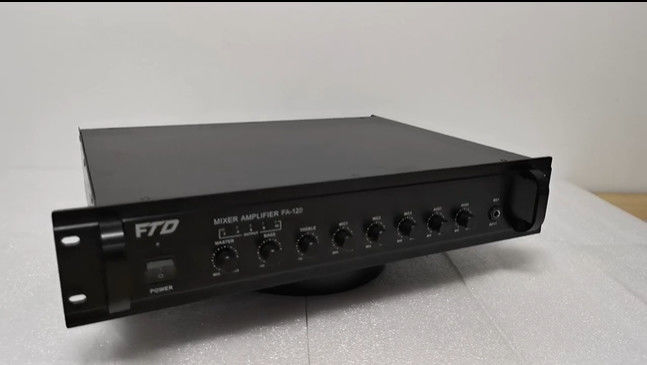

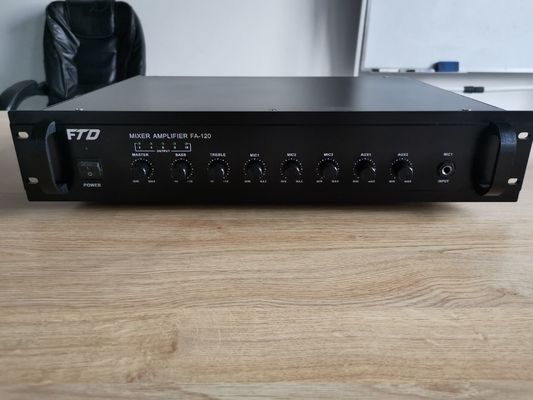

The Public Address (PA) Mixer Amplifier is suitable for school, super market, bank, hotel BGM and speech use.
It is integrate pre amplifier and mixer power amplifier into one 19” 2U height unit of tabletop design, which is
economy but of high reliable performance.
The tabletop mixer amplifier rated power out at 60W-500w. Its speaker outputs with 100V, 70V and 4‐16ohms for
versatile connections.

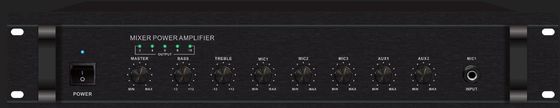

It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack,

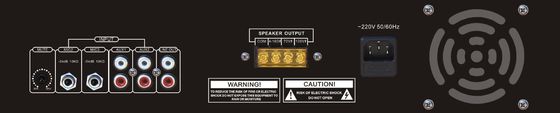

microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2
inputs volume control on front panel with bass and treble tone control.
The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.
Features:
1.Public address (PA) tabletop mixer power amplifier.
2. Commercial & industrial range BGM & paging amplifier.
3.Rated outputs of 60W/120W/240W/350W/500W
4.70V, 100V and low impedance 4-16 ohms speaker outputs.
5.3 microphone inputs and 2 line inputs.
6.Mic1 on front panel by phone jack, mic2-3 on rear panel by phone jack.
7.Line 1-2 inputs on rear panel by RCA.
8.Microphone1 of VOX features of highest input priority.
9.Microphone1-3 & Line1-2 inputs volume control on front panel with bass and treble tone control.
10.Power and output level meters.
11. Overload, short circuit and high temp protection.
12.With natural cooling fan to control the internal temperature.
13.Warranty of 5 years with CE certificate.
