Description:

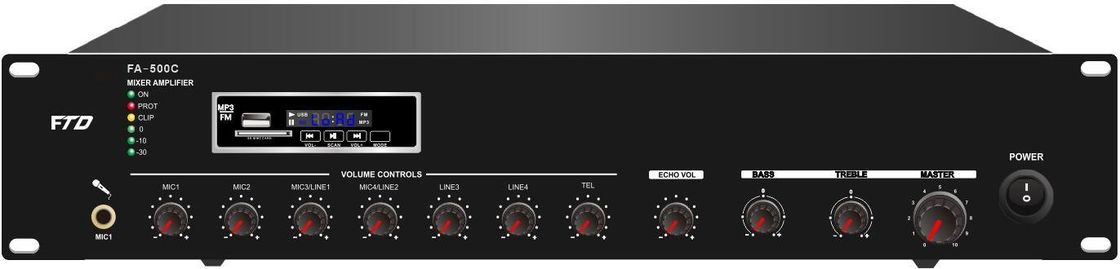

The Public Address (PA) Mixer Amplifier is suitable for school, super market, bank, hotel BGM and speech use.
It is integrate pre amplifier, Mp3 player and mixer power amplifier into one 19” 2U height unit of tabletop design, which is
economy but of high reliable performance..
The rack size mixer amplifier rated power out at 60W-500w. Its speaker outputs with 100V, 70V and 4‐16ohms for
versatile connections.
It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack,
microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2
inputs volume control on front panel with bass and treble tone control.
The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.
Features:
1.Desktop or 19” rack mount public address amplifier
2.PA amplifier with Mp3 player, FM radio & blue tooth
3.Rate power output at 60W, 120W, 240W, 350W to 500W
4.Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
5.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
6.LED indicators for power, clip, protect and signal
7.Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3
8.microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line
9. output. Telephone input with VOX priority and MOH (Music on Hold).
10 Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
11 With short-circuit, clip, overload and high temp protection
12AC 110 or 220V & 24V DC both operation system
13 With 19” rack mount ears
