Product Details:
|
| Description: | 6 Zone Voice Evacuation Amplifier | Rated Power Output: | 500W |
|---|---|---|---|
| Fireman Microphone: | 5Mv, 600Ω | REC Output: | 200mV |
| Speaker Output: | 100V AB 8 Zone Speaker Outputs | Dimension: | 484(W)×132(H)×449(D) Mm |
| Weight: | 24kg | Power Consumption: | 600W |
| High Light: | Wireless Fire Alarm Voice Evacuation System,6 Zone Voice Evacuation System |
||
Specification
| Model | EN-6500ET |

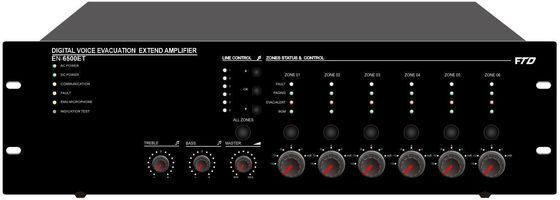

| Description | 6 Zone Voice Evacuation Amplifier |
| Rated Power Output | 500W |
| Fireman Microphone | 5Mv, 600Ω |
| Line 1-2 Inputs | 385mV, 10kΩbalanced Combo |
| Line 3-6 Inputs | 350mV, 10kΩ, RCA |
| Frequency Response | 80Hz~20kHz |
| THD | <1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Speaker Output | 100V AB 8 zone speaker outputs |
| REC Output | 200mV |
| Control Input & Output | 8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact |
| Voice Message | MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid |
| Event Record | HEX format, Hard Flash memory, events up to 1000 records, 10 years valid |
| Operation Environment | Operation Temp: +5ºC ~ +40ºC; Store Temp: -20ºC ~ +70ºC; Operation Humidity: <95% |
| Power Consumption | 600W |
| Power Supply | AC230V or 115V & DC24V battery inputs, 50-60HZ |
| AC Fuse | 250V/6.3A, slow type and restorable fuse |
| Dimension | 484(W)×132(H)×449(D) mm |
| Weight | 24kg |
