Product Details:
|
| Description: | 6 Zone Voice Evacuation Amplifier | Rated Power Output: | 500W |
|---|---|---|---|
| Fireman Microphone: | 5Mv, 600Ω | Frequency Response: | 80Hz~20kHz |
| S/N Ratio: | >70dB | Speaker Output: | 100V AB 8 Zone Speaker Outputs |
| Dimension: | 484(W)×132(H)×449(D) Mm | Weight: | 24kg |
| High Light: | Voice Evacuation System 500w,Evac Controller Voice Evacuation System,6 Zone Voice Evacuation System |
||
Specification
| Model | EN-6500 |

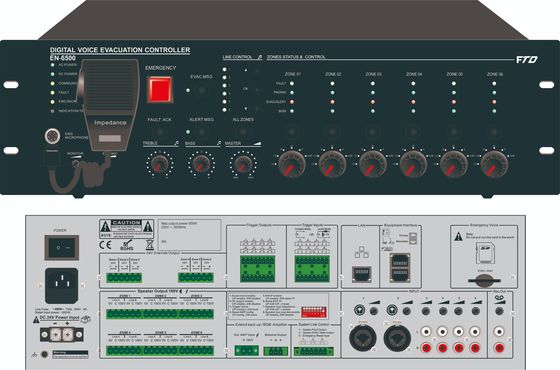

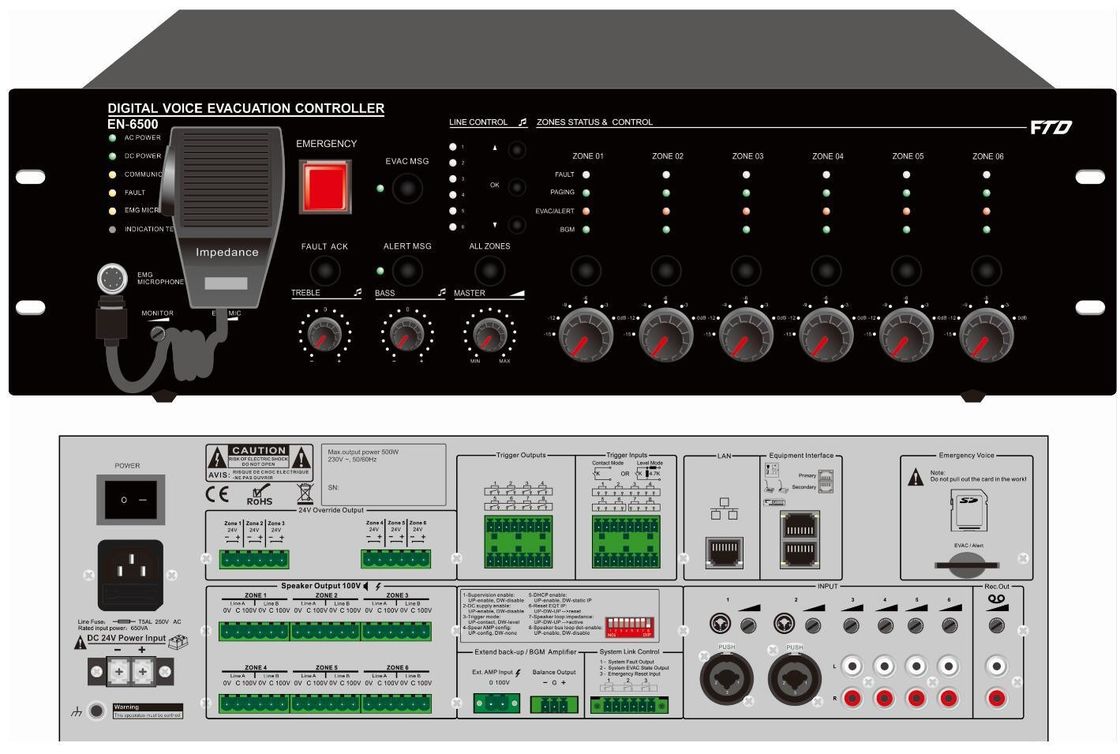

| Description | 6 Zone Voice Evacuation Amplifier |
| Rated Power Output | 500W |
| Fireman Microphone | 5Mv, 600Ω |
| Line 1-2 Inputs | 385mV, 10kΩbalanced Combo |
| Line 3-6 Inputs | 350mV, 10kΩ, RCA |
| Frequency Response | 80Hz~20kHz |
| THD | <1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Speaker Output | 100V AB 8 zone speaker outputs |
| REC Output | 200mV |
| Control Input & Output | 8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact |
| Voice Message | MP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid |
| Event Record | HEX format, Hard Flash memory, events up to 1000 records, 10 years valid |
| Operation Environment | Operation Temp: +5ºC ~ +40ºC; Store Temp: -20ºC ~ +70ºC; Operation Humidity: <95% |
| Power Consumption | 600W |
| Power Supply | AC230V or 115V & DC24V battery inputs, 50-60HZ |
| AC Fuse | 250V/6.3A, slow type and restorable fuse |
| Dimension | 484(W)×132(H)×449(D) mm |
| Weight | 24kg |
The PA 6 Zone Mixer Amplifier with MP3 and FM tuner, its rated power output from 60W, 120W, 240W, 350W to 500W, it is ideal for school, super market, bank, hotel BGM and speech use.
Contact Person: Mr. Jack Tan
