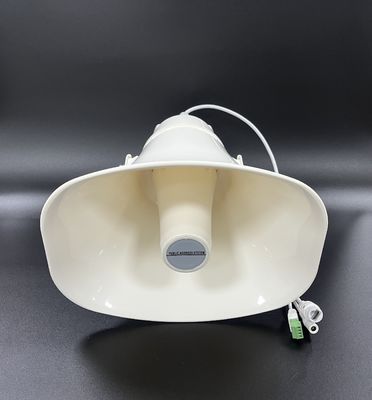

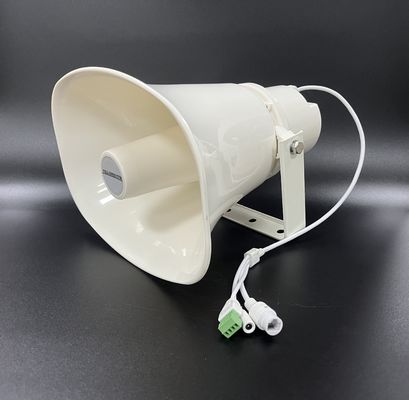

Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP

Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP
Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP

Large Image :  Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE,ROHS
Model Number: FIP-930POE
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $85~$95
Packaging Details: carton
Delivery Time: 1-7days
Payment Terms: L/C, T/T
Supply Ability: 10000

Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP

Description
S/N Ratio: ≧85dB THD: ≦0.1%
Frequency Response: 100-18KHz(±3dB) Material: ABS Cabinet
High Light:

Outdoor Stage Sound System Horn

,

30w Outdoor Stage Sound System



Outdoor Stage Sound System Horn 30w Exclusive Audio IP System TCP







Product Description
Model
FIP-930POE
Description
IP POE Wall Mount Speaker
Power Output(1KHz@-3dB)
30 Watts
Built-in Amplifier
30W Watts
Speaker Unit
1.5” driver*1
Network I/F
10/100Mbps
Protocol
ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast)
Audio Format
MP3/MP2
Audio Quality
16digit stereo CD level
Sampling Rate
8K~48K
Bit Rate
8K~512Kbps
Sensitivity
95dB/1W/1M
S/N Ratio
≧85dB
THD
≦0.1%
Frequency Response
100-18KHz(±3dB)
Connector
One RJ45 port for existing LAN/WAN & internet
One control input, 0V, short circuit contact
One control output, 0V, short circuit contact
One DC12V battery backup input
Power Input
POE 802.3af or POE 802.3at & DC 12V
Dimension
285x205(H)mm
Operation Temp
-30℃ to +55℃
Weight
2.2kg
Material
ABS cabinet



Features:



* POE (Power over Ethernet) supportable all in one network audio system
* POE IP PA system with background music, paging system and voice alarm system
* Minimum cable connection over existing LAN/WAN/Internet systemHuge system capacity up to 1,200 zones
* Support with existing POE switch network system
* Compatible with both IEEE 802.3af & IEEE 802.3at
* IP based POE powered 30W Horn speaker
* Built-in IP module, 30W class-D amplifier and speaker
* Single network cable for control, signal and power supply
* Same POE speakers enable to be several group or zone defined
* Different music or voice message simultaneously broadcasted through different POE speakers
* Paging prioritization and background music system
* Network adjustable speaker volume
* Closed contact input & Closed contact output for third party integration
* DC12V power supply input as standby use



Description:



1.The IP POE Powered Horn Speaker is the latest in IP technology. This Power over Ethernet (Compatible with both IEEE 802.3af & IEEE 802.3at) VoIP mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast.


2.The POE powered Horn speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.

3.The POE powered ceiling speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External DC12V connector is also equipped in this POE speaker for standby power supply use.

4.The POE horn speaker is designed with outdoor horn speaker with 30W class-D amplifier.

5.There is one contact input and one contact output to interactive with third party system. The remote paging microphone FIP-900TM enables to make announcement over individual speaker, group speakers over network.
