Product Details:
|
| Description: | IP POE Wall Mount Speaker | Power Output (1KHz@-3dB): | 10 Watts/15W Watts |
|---|---|---|---|
| Built-in Amplifier: | 15W Watts | Bit Rate: | 8K~512Kbps |
| Sensitivity: | 92dB/1W/1M | Frequency Response: | 100-18KHz(±3dB) |
| Weight: | 2.5kg | Dimension: | 257(W)×185(D)×170(H)mm |
| High Light: | Ip Poe Powered Wall Mount Speakers,15W Wall Mount Speakers |
||
10W/15W IP Amplifier Pa System Ip Poe Powered Wall Mount Speakers
Features
The IP POE Powered Wall Mount Speaker is the latest in IP technology. This Power over Ethernet (Compatible with both IEEE 802.3af & IEEE 802.3at) VoIP mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast.
The POE powered wall mount speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.
The POE powered ceiling speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External DC12V connector is also equipped in this POE speaker for standby power supply use.
The POE wall mount speaker is designed with 5” two way wall mount speaker with 15W class-D amplifier.
There is one contact input and one contact output to interactive with third party system. The remote paging microphone FIP-900TM enables to make announcement over individual speaker, group speakers over network
| Model | FIP-920POE |
| Description | IP POE Wall Mount Speaker |
| Power Output (1KHz@-3dB) | 10 Watts/15W Watts |
| Built-in Amplifier | 15W Watts |
| Speaker Unit | 5” woofer+1.5” tweeter |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/MP2 |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 100-18KHz(±3dB) |
| Connector |
One RJ45 port for existing LAN/WAN & internet One control input, 0V, short circuit contact One control output, 0V, short circuit contact One DC12V battery backup input |
| Power Input | POE 802.3af or POE 802.3at & DC 12V |
| Operation Temp | -30℃ to +55℃ |
| Dimension | 257(W)×185(D)×170(H)mm |

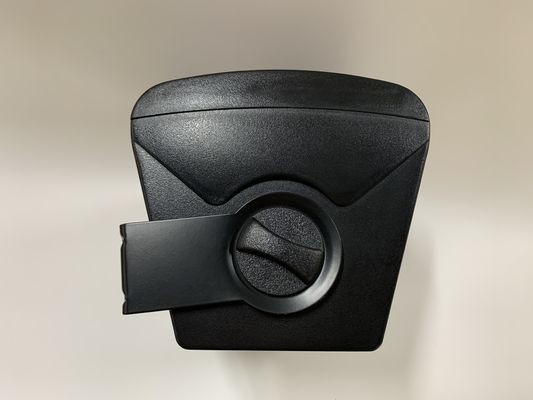

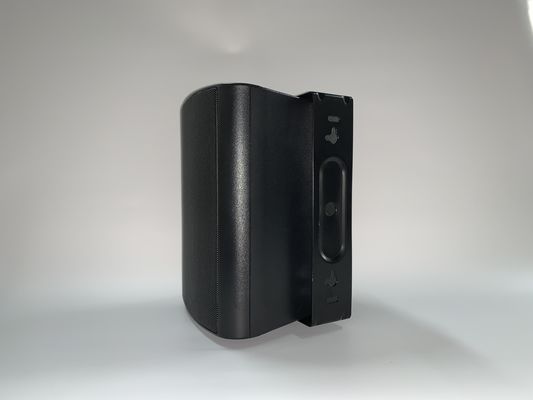

| Bracket | U-Shaped wall mount bracket |
| Material | ABS cabinet and steel grille |
| Weight | 2.5kg |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
Contact Person: Mr. Jack Tan
