Product Details:
|
| Description: | 30W IP Active Speaker Outdoor Column Speakers | Built-in Amplifier: | 30W Watts |
|---|---|---|---|
| Speaker Unit: | 5” Woofer+1.5” Tweeter | Bit Rate: | 8K~512Kbps |
| Sensitivity: | 92dB/1W/1M | Operation Temp: | -30℃ To +55℃ |
| Dimensions: | 373*152*100mm | Weight: | 2.8KG |
| High Light: | 30W IP Active Speaker,Outdoor Column IP Active Speaker,92dB Outdoor Column Speakers |
||
30W IP Active Speaker Outdoor Column Speakers
Features
1. IP PA system with background music, paging system and voice alarm system
2. Minimum cable connection over existing LAN/WAN/Internet system
3. Huge system capacity up to 1,200 zones
4. Support with existing IP switch network system
5. IP based active outdoor two way column speaker
6. Support DHCP no need to set IP address one by one
7. Support speaker line supervision, speaker off line will be detected
8. Built-in IP module, 30W class-D amplifier
9. Support protocols of UDP,TCP/IP,IGMP
10. Same IP speakers enable to be several group or zone defined
11. Different music or voice message simultaneously broadcasted through different IP speakers
12. Paging prioritization and background music system
13. Network adjustable speaker volume
14. Closed contact input & Closed contact output for third party integration
15. IP column speaker is good for outdoor IP system appliciation
Specification
| Model | FIP-950POE |
| Description | IP network column speaker |
| Power Output (1KHz@-3dB) | 30 Watts |
| Built-in Amplifier | 30 Watts |
| Speaker Unit | 5” woofer+1.5” tweeter |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/WAV |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 100-18KHz(±3dB) |

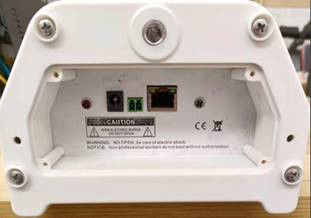

| Connector |
One RJ45 port for existing LAN/WAN & internet One control input, 0V, short circuit contact One control output, 0V, short circuit contact One DC12V battery backup input |
| Power Input | POE 802.3af or POE 802.3at & DC 12V |
| Operation Temp | -30℃ to +55℃ |
| Dimension | 373*152*100mm |
| Bracket | U-Shaped wall mount bracket |
| Material | ABS cabinet and steel grille |
| Weight | 2.8kg |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
