Product Details:
|
| Description: | IP Amplifier | Rated Power Output: | 120W |
|---|---|---|---|
| Protocol Support: | TCP/IP, UDP, IGMP (group Broadcasting) | Frequency Response: | 20Hz~16KHz |
| THD: | ≤0.3% | S/N Ratio: | ≥85dB |
| Dimensions: | 484x420x44mm | Weight: | 6kg |
| High Light: | 120W Ip Pa System,85dB Ip Pa System,Ip Amplifier |
||

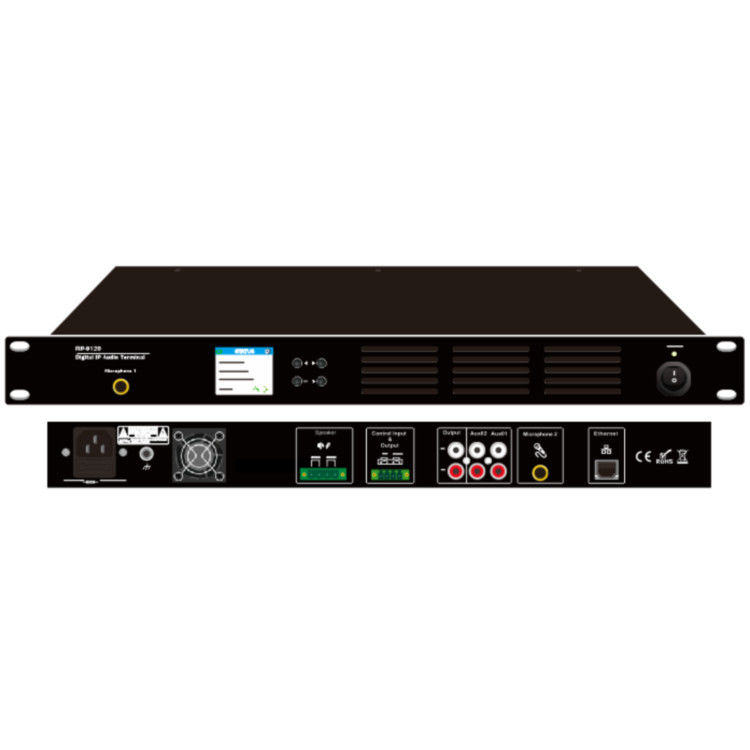

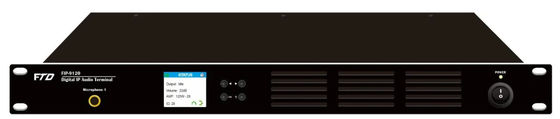

120W Ip Pa System Ip Network Amplifier For Project
Description
The IP Amplifier, which build in the IP network audio decoder/IP streaming and 100V amplifier. The IP amplifier is of 19" rack mount design, it is built-in amplifier rated output at 120W. The IP network technology also allow this IP network amplifier could be installed anywhere even near to the speaker to save cable wiring from control room to each zone. The advantages of the network audio system are: Super distance audio transmission, multiple channel audio matrix, simultaneous multiple programs and non-dedicated network wiring.
Features
1U height 19 inch rack size power amplifier
IP amplifier with audio decoder.
Build in LCD screen
Simple system configuration by system server, paging microphone & IP network amplifier to set up IP audio system. Huge system capacity of 6,000 zones paging and multiple BGM system.
IP based public address system over LAN/WAN or Internet. Minimum cable connection by using existing network framework. Non-dedicated network audio system solution.
Economy network PA system for multiple room and multiple program applications. Ideal for school, office, restaurant and fitness center IP PA sound system.
IP network decoder built-in 100V Amplifier.
Build in speaker line supervision
Rated power output of 120W.
Two microphone inputs and two line inputs and one line output.
Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP amplifier. Remote volume control and program control from server room.
Timely broadcast ring bell or pre-recorded message to pre-set zones.
IP remote paging microphone enables to talk to each speaker zone or amplifier over network.
Specification
| Model | FIP-9120 |
| Description | IP Amplifier |
| Rated Power Output | 120W |
| Protocol Support | TCP/IP, UDP, IGMP (group broadcasting) |
| Transmit Speed | 10/100Mbps |
| Audio Format | 16 digit stereo CD tone |
| Frequency Response | 20Hz~16KHz |
| THD | ≤0.3% |
| S/N Ratio | ≥85dB |
| Connector | One RJ45 port, two mic inputs and two line input and one line output |
| Speaker Output | 100V |
| Working Temperature | -5ºC to +40ºC |
| Humidity | 10% ~ 90% |
| Power Consumption | 440W |
| Power Supply | AC220V, 50-60Hz |
| Dimensions | 484x420x44mm |
| Weight | 6kg |
