Product Details:
|
| Description: | IP POE Column Speaker Speaker | Built-in Amplifier: | 10W Watts |
|---|---|---|---|
| Speaker Unit: | 5” Woofer+1.5” Tweeter | Bit Rate: | 8K~512Kbps |
| Sensitivity: | 92dB/1W/1M | Operation Temp: | -30℃ To +55℃ |
| Dimensions: | 373*152*100mm | Weight: | 2.8KG |
| High Light: | Ip Poe Column Speaker,Outdoor Ip Poe Column Speaker,Column Speaker |
||

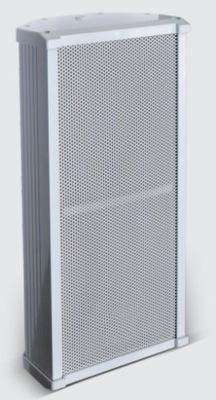

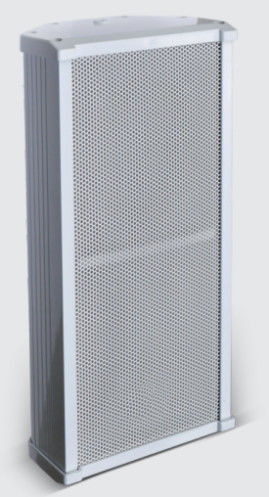

Audio System Sound 10w Outdoor Ip Poe Column Speaker
Features
1.POE (Power over Ethernet) supportable all in one network audio system
2.POE IP PA system with background music, paging system and voice alarm system
3.Minimum cable connection over existing LAN/WAN/Internet system
4.Huge system capacity up to 1,200 zones
5.Support protocols of UDP,TCP/IP,IGMP
6.Compatible with both IEEE 802.3af & IEEE 802.3at
7.IP based POE powered 10W two way column speaker
8.Built-in IP module, 10W class-D amplifier and speaker
9.Single network cable for control, signal and power supply
10.Same POE speakers enable to be several group or zone defined
11.Different music or voice message simultaneously broadcasted through different POE speakers
12.Paging prioritization and background music system
13.Network adjustable speaker volume, treble, bass
14.Closed contact input & Closed contact output for third party integration
15.DC12V power supply input as standby use
Specification
| Model | FIP-950POE |
| Description | IP POE column Speaker Speaker |
| Power Output (1KHz@-3dB) | 10 Watts, max 15W Watts |
| Built-in Amplifier | 10W Watts |
| Speaker Unit | 5” woofer+1.5” tweeter |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/WAV |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 100-18KHz(±3dB) |
| Connector |

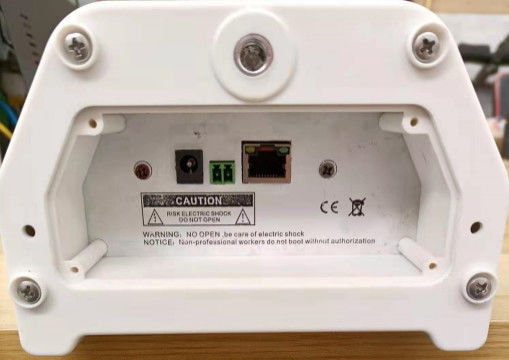

One RJ45 port for existing LAN/WAN & internet One control input, 0V, short circuit contact One control output, 0V, short circuit contact One DC12V battery backup input |
| Power Input | POE 802.3af or POE 802.3at & DC 12V |
| Operation Temp | -30℃ to +55℃ |
| Dimension | 373*152*100mm |
| Bracket | U-Shaped wall mount bracket |
| Material | ABS cabinet and steel grille |
| Weight | 2.8kg |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
Contact Person: Mr. Jack Tan
