Product Details:
|
| Description: | IP Network Classic Intercom Panel | Network Protocol: | TCP, UDP, ARP, ICMP, IGMP |
|---|---|---|---|
| Frequency Response: | 20Hz-20KHz | Power Consumption: | 5W |
| S/N Ratio: | ≥90dB | Waterproof Rate: | IP54 |
| Dimensions: | 255(W)×115(D)×50(H)mm | Power Supply: | DC 12V |
| High Light: | 90dB Public Address Audio System,Ip Intercom Public Address Audio System,Public Address System |
||

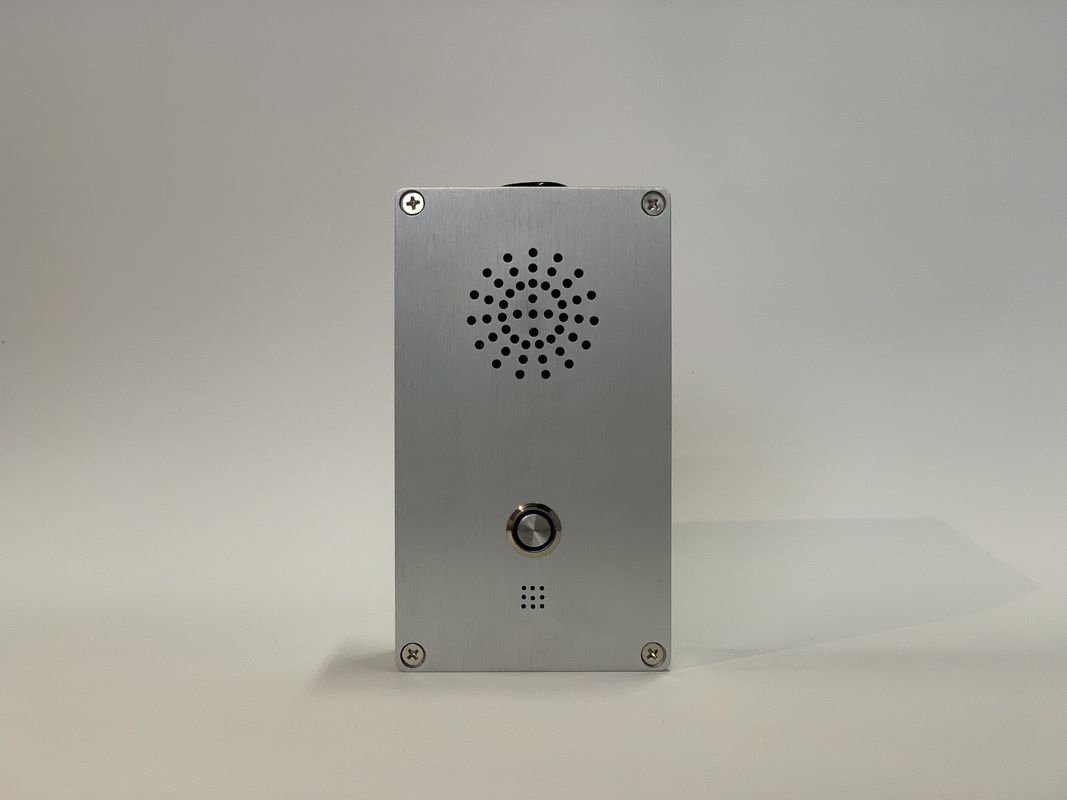

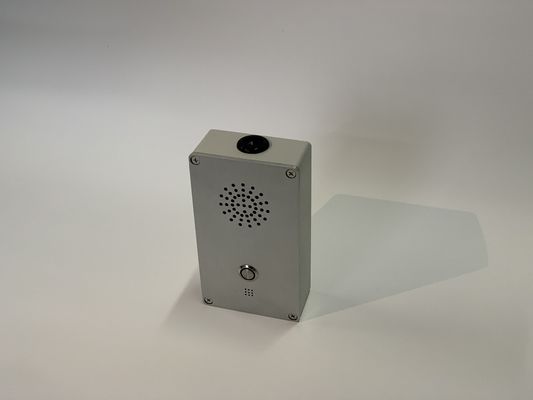

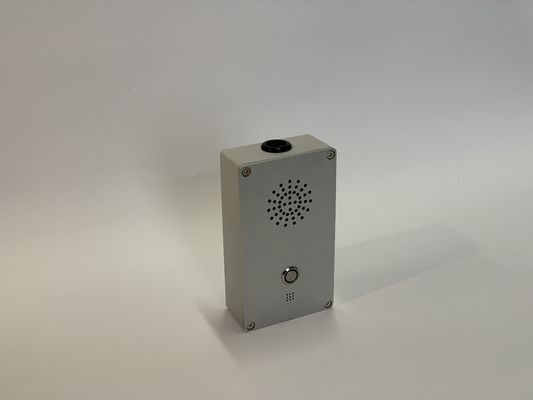

Public Address Audio System Ip Intercom System Ip Intercom For Project
Features
1.Ideal solution for outdoor or indoor two way communication system in park, school, factory, train station and airport.
2.IP network intercom system very suitable for big scale installation system whether by CAT5 cable or fiber optical cable.
3.Aluminum finish with damage proof screw fixing up.
4.Both surface and embedded mounting ways with supplied mounting box.
5.Classic range high quality IP intercom panel.
6.Intercom panel built-in speaker and microphone.
7.Full duplex two way communication system.
8.It can start the communication to the call station by pressing the call button, the call station will be reminded with ring call and indicator as which intercom panel from where is calling. The call will be automatically transferred to next call station once busy, no answer or fault occurred.
9.With one contact output and contact input for third party communication.
10.Non dedicated network is needed, the system could be easily built-up over exiting LAN/WAN network.
11.Embedded server Lynux technology with two ARM and DSP high speech chip.
12.Max support 64,000 call stations working at the same time.
13.Start time less than 0.1 second.
14.Network data delay of less than 100 milliseconds.
15.Waterproof rate of IP54.
16.It is powered by DC12V, the power adapter is included.
Specification
| Model | FIP-900IT |
| Description | IP Network Classic Intercom Panel |
| Mounting | Support both surface or embedded by supplied mounting box |
| Power Supply | DC 12V |
| Power Consumption | 5W |
| Network Protocol | TCP, UDP, ARP, ICMP, IGMP |
| Network Speed | 10/100Mbps |
| Audio Sampling | 8KHz-44.1KHz, 16 bits |
| Transmission Rate | 8Kbps to 320Kbps |
| S/N Ratio | ≥90dB |
| Frequency Response | 20Hz-20KHz |
| Data Delay | 100 milliseconds |
| Waterproof Rate | IP54 |
|
Connector |
One line output & one RJ45 port for LAN, one contact input and one contact output |
| Dimensions | 255(W)×115(D)×50(H)mm |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
Contact Person: Mr. Jack Tan
