Product Details:
|
| Product Name: | IP Based Horn Speaker | Power Output: | 30W/8Ω |
|---|---|---|---|
| MAXIMUM SPL: | 97dB±3dB | NETWORK PROTOCOL: | TCP/IP、UDP、ARP、ICMP、IGMP、SIP |
| WORKING TEMP& HUMIDITY: | -20℃～50℃,10%-90%RH(Not Condensing) | Power Input: | DC 12V |
| Operation Temp: | -30 To 55℃ | Dimension: | 285×285mm X 210mm |
| High Light: | 100dB PA System Speakers,Sip PA System Speakers |
||

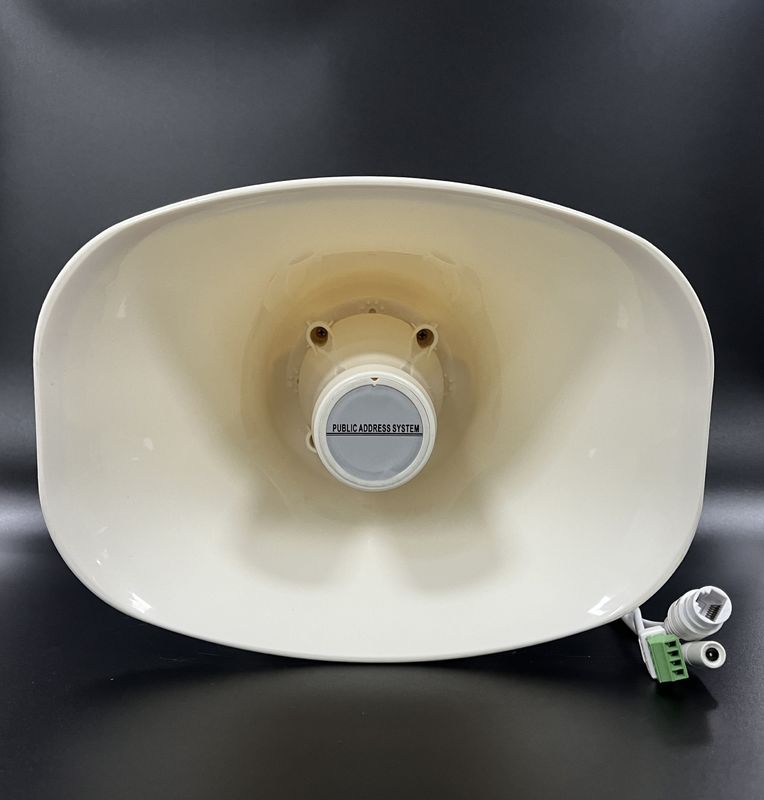

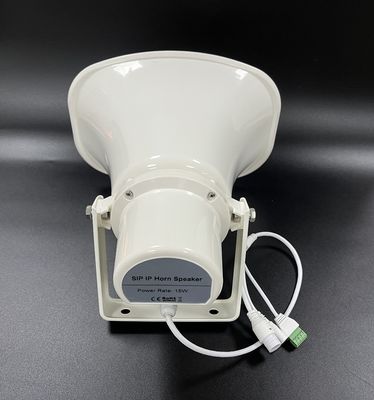

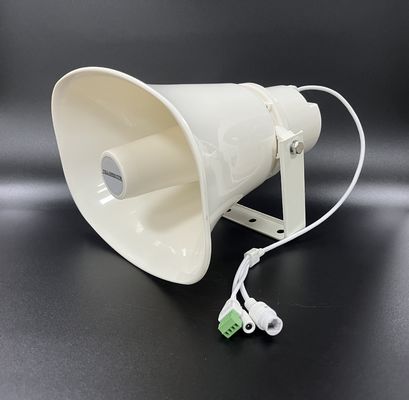

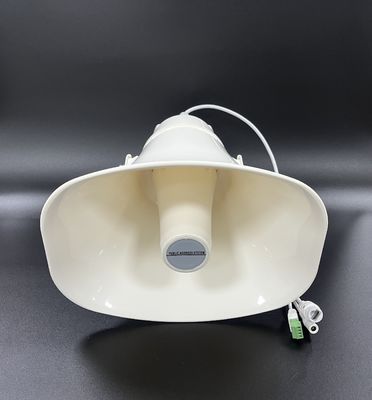

30w Sip Ip Speakers Pa System Ip Horn Speaker For Project
Features
The IP horn Speaker is the latest in IP technology. It is based on SIP protocol, it support to work with any standard SIP software like SIP telephone software
The SIP IP speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and even power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.
The IP horn speaker is designed with 6” full range speaker with 30W class-D amplifier
There is one contact input to connect with other third fire alarm system, once the trigger is active, it will broadcast any pre set message to any IP device.
| Model | FIP-930SIP |
| Description | IP Based Horn Speaker |
| Power Output | 30W/8Ω |
| NETWORK CHIP RATE | 10/100Mbps |
| MAXIMUM SPL | 97dB±3dB |
| SENSITIVITY | 88dB±3dB /W/M |
| NETWORK PROTOCOL | TCP/IP,UDP,ARP,ICMP,IGMP,SIP |
| AUDIO CODE | MP2/MP3/PCM/ADPCM/G.711/G.722 |
| AUDIO SAMPLING & BIT RATE | 8kHz～44.1kHz, 16bit, 8kbps-320kbps |
| S/N | ≥90dB, 100-18KHz |
| NETWORK DELAY | Broadcast delay≤30ms |
| WORKING TEMP& HUMIDITY | -20℃～50℃,10%-90%RH(Not condensing) |
| Connector |
One RJ45 port for existing LAN/WAN & internet One closed contact input for emergency button, 0V, short circuit contact One closed contact output for emergency light, 0V, short circuit contact |
| Power Input | DC 12V |
| Operation Temp | -30 to 55℃ |
| Dimension | 285×285mm X 210mm |
| Weight | 1.8kg |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
