Product Details:
|
| Size: | 285*205(H)mm | Color: | White |
|---|---|---|---|
| Power: | 30 Watts | Material: | ABS Cabinet |
| Frequency Response: | 100-18KHz（±3dB） | S/N Ratio: | ≧85dB |
| High Light: | Outdoor SIP Horn Speaker,IP66 SIP Horn Speaker,SIP Horn Speaker POE Powered |
||

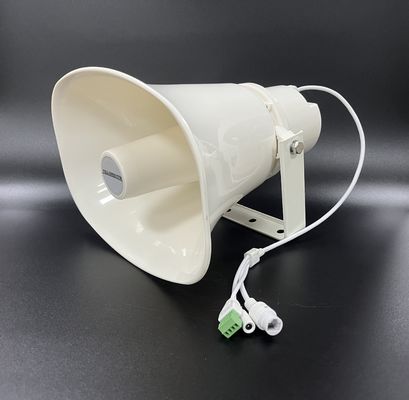

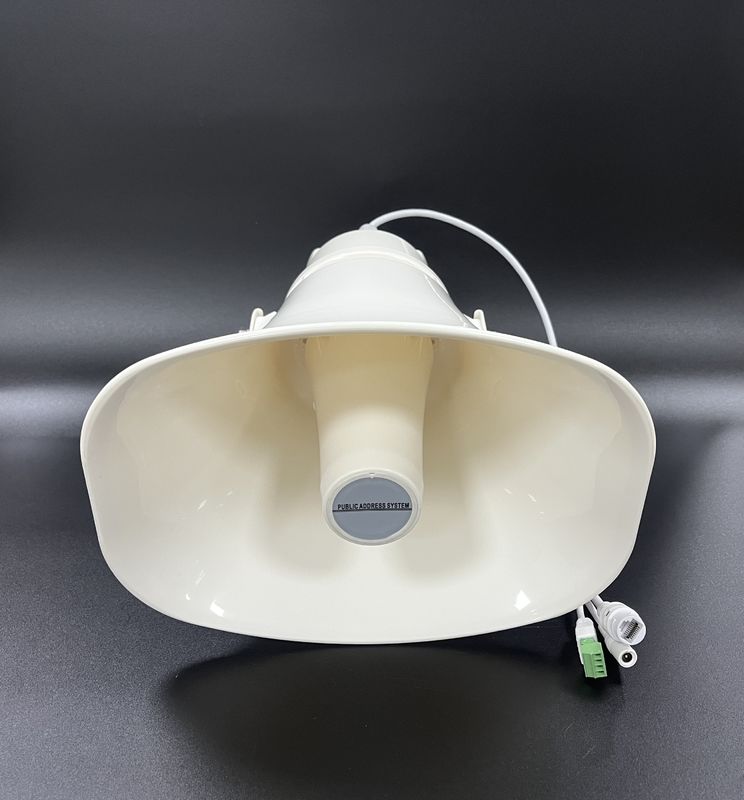

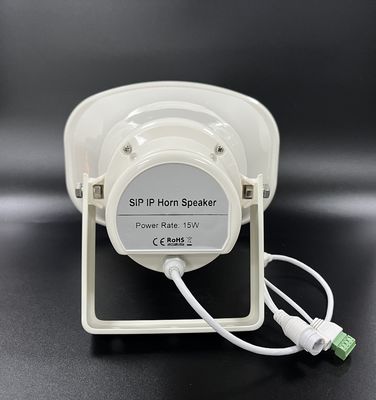

| Product Name | SIP IP Horn Speaker |
| Material | ABS cabinet, Iron wall mount bracket |
| Package | Carton |
The IP horn Speaker is the latest in IP technology. It is based on SIP protocol, it support to work with any standard SIP software like SIP telephone software
The SIP IP speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and even power supply, by this way, the layout cost will be much decreased
without any consideration of AC nor DC power supply.
The IP horn speaker is designed with 6” full range speaker with 15W class-D amplifier
There is one contact input to connect with other third fire alarm system, once the trigger is active, it will broadcast any pre set message to any IP device.
.
Features
With an integration of the network audio decoding and digital amplifier and speakers and a installation of wall-mounted design;
With a built-in hi-fi speakers and stereo Class-D power amplifiers(15 watts (8Ω)
Supportive of POE power supply and SIP protocol, with the function of adjusting speaker output volume remotely on server;
With a high-speed dual-core (ARM + DSP) chip of industrial grade; start time≤1 s
With a standard RJ45 interface supportive of crossing network segment and router, accessible to the system if the Ethernet is available;
| Model | FIP-930SIP |
| Description | IP Based Horn Speaker |
| Power Output | 15W/8Ω |
| NETWORK CHIP RATE | 10/100Mbps |
| MAXIMUM SPL | 97dB±3dB |
| SENSITIVITY | 88dB±3dB /W/M |
| NETWORK PROTOCOL | TCP/IP,UDP,ARP,ICMP,IGMP,SIP |
| AUDIO CODE | MP2/MP3/PCM/ADPCM/G.711/G.722 |
| AUDIO SAMPLING & BIT RATE | 8kHz～44.1kHz, 16bit, 8kbps-320kbps |
| S/N | ≥90dB, 100-18KHz |
| NETWORK DELAY | Broadcast delay≤30ms |
| WORKING TEMP& HUMIDITY | -20℃～50℃,10%-90%RH(Not condensing) |
| Connector |

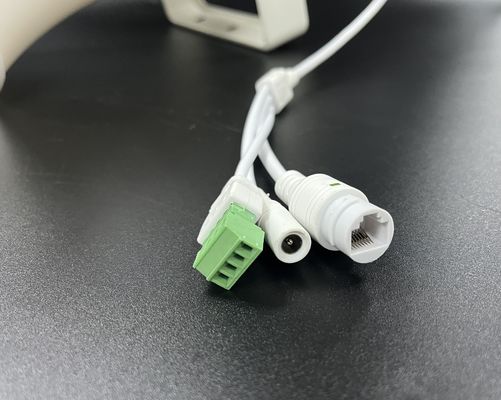

One RJ45 port for existing LAN/WAN & internet One closed contact input for emergency button, 0V, short circuit contact One closed contact output for emergency light, 0V, short circuit contact |
| Power Input | DC 12V |
| Operation Temp | -30 to 55℃ |
| Dimension | 285×285mm X 210mm |
| Weight | 1.8kg |
