EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

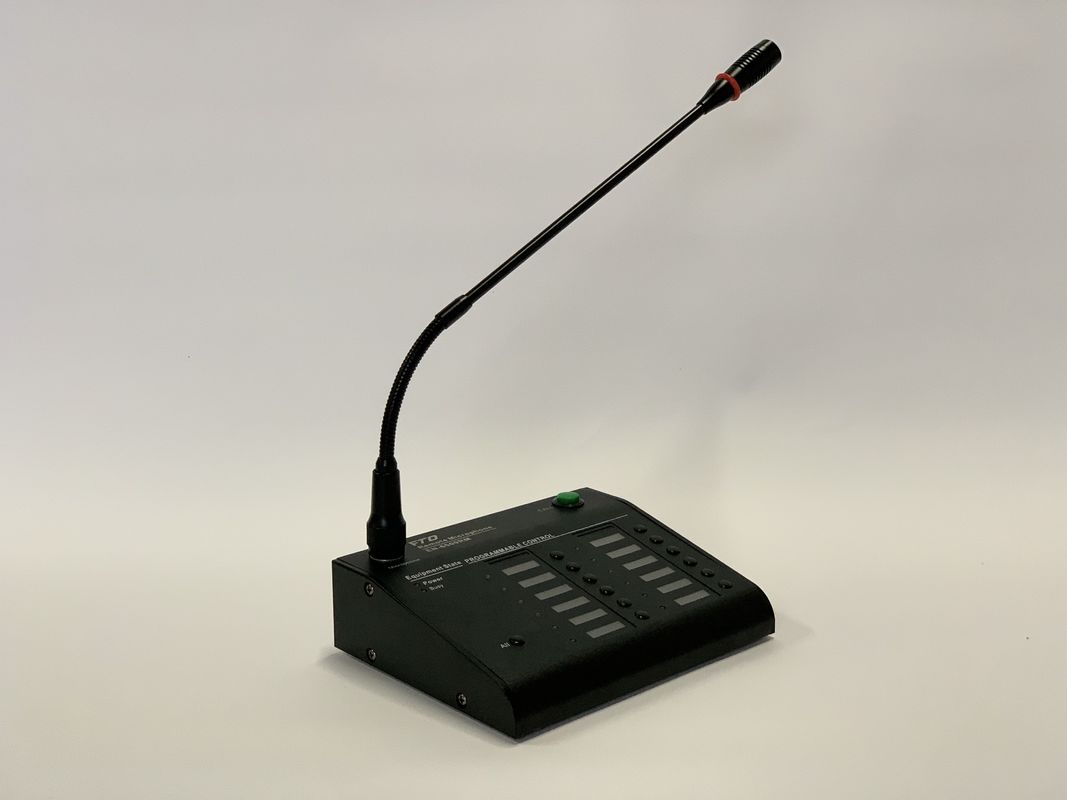

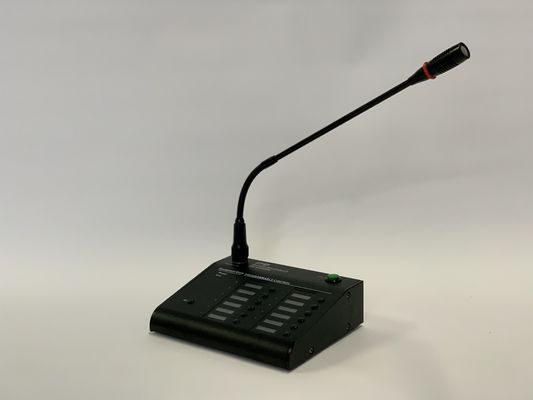

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone
EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone

Large Image :  EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Certification: CE
Model Number: EN-6500RM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 500PCS Per Month

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone

Description
Zone Capacity: 12 Zones System Capacity: 32 Remote Microphones
Frequency Response: 80Hz~16kHz S/N Ratio: >70dB
Power Consumption: 3W Line Inputs: 350mV, 10kΩ
High Light:

EN54 voice alarm call station

,

voice alarm call station DC24V

,

remote paging microphone 12 Zones

EN-54 12 Zones Digital Voice Evacuation System Remote Paging Microphone


Product Description

Product Name Zone Voice Alarm Remote Microphone
Material Metal
Package Carton



EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 0EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 1







Features

  • Digital voice evacuation system remote paging microphone.
  • Each microphone of 12 zone capacity.
  • System support 32 remote microphones of loop connection.
  • System indicators of AC, DC, fault, Mic status and test.
  • 12 zone selection buttons and all zone button.
  • 12 zone selection buttons can be programmed.

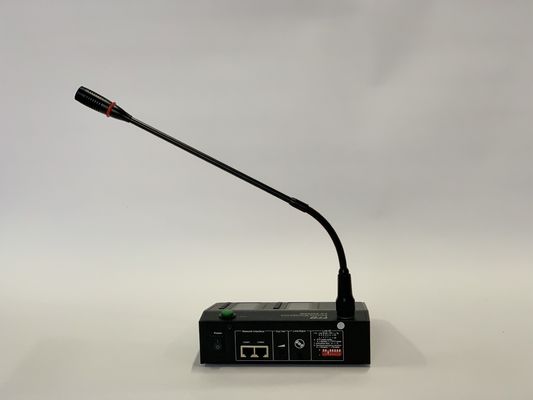

  • Two RJ45 ports for connection with EN-6500 and next remote microphone.
  • One 3.5mm line input, with output volume control.
  • Support PPT and normal paging two modes.
  • CAT5 or CAT6 cable communication up to 600 meters.
  • Support paging microphone failure has been supervised.


System Diagram&Specification

Model EN-6500RM
Description Voice Alarm Remote Microphone
Power Consumption 3W
Zone Capacity 12 Zones
System Capacity 32 Remote microphones
Line Inputs 350mV, 10kΩ
Mic Input 5mV, 600Ω
Frequency Response 80Hz~16kHz
THD <1% at RMS,1KHz
S/N Ratio >70dB
Operating Temp -20℃ to +70℃
Power Supply DC24V, ±20%
Humidity <95% no condensation






EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 2





Certifications&Exhibition


EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 3

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 4

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 5

EN54 Voice Alarm Call Station DC24V 12 Zones Remote Paging Microphone 6


Company Introduction


Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!
