POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V

Certification
China Guangzhou FTD Audio Electronics Limited certification
China Guangzhou FTD Audio Electronics Limited certification
I'm Online Chat Now

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V
POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V

Large Image :  POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Certification: CE
Model Number: EN-6500TM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 500PCS Per Month

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V

Description
Zone Capacity: 120 Zones System Capacity: 32 Remote Microphones
Frequency Response: 80Hz~16kHz Humidity: <95% No Condensation
Line Inputs: 350mV, 10kΩ Mic Input: 5mV, 600Ω
High Light:

POE emergency voice evacuation system DC24V

,

Voice Evacuation Systems DC24V

,

voice evac fire alarm DC24V

Zone Voice Alarm Remote Tounch Screen Microphone DC24V Power Supply Or POE


Product Description

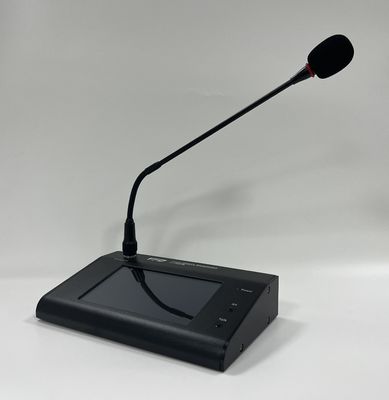

Product Name Zone Voice Alarm Remote Microphone
Material Metal
Package Carton



POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 0POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 1POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 2







Features

  • Each microphone of 120 zone capacity.
  • Support 32 remote microphones of loop connection.
  • Remote paging microphone with touch screen display.
  • System indicators of AC, DC, fault, Mic status and test.
  • 120 zone selection buttons through touch screen and all zone/talk button.

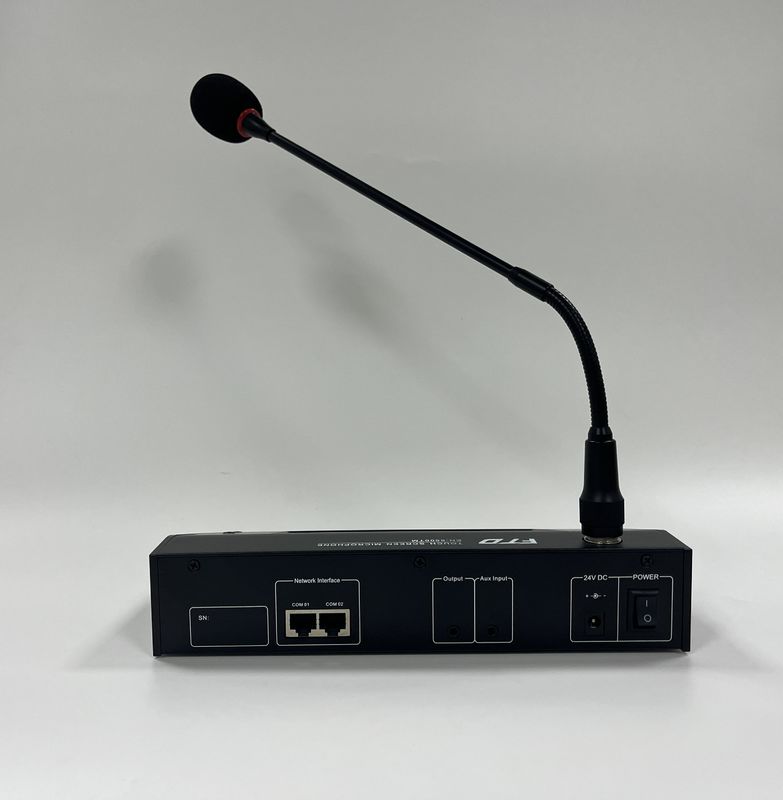

  • Two RJ45 ports for connection with EVAC-500 and next remote microphone.
  • One 3.5mm line input, with output volume control.
  • Support PPT and normal paging two modes.
  • DC24V power supply or POE.


System Diagram&Specification


Model

EN-6500TM

Description

Voice Alarm Remote Microphone (Touch Screen)

Power Consumption

3W

Zone Capacity

120 Zones

System Capacity

32 Remote microphones

Line Inputs

350mV, 10kΩ

Mic Input

5mV, 600Ω

Frequency Response

80Hz~16kHz

THD

<1% at RMS,1KHz

S/N Ratio

>70dB

Operating Temp

-20℃ to +70℃

Power Supply

DC24V, ±20%

Humidity

<95% no condensation

Dimension

256(W)×149(H)×52(D) mm

Weight

1.5kg



POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 3





Certifications&Exhibition


POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 4

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 5

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 6

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 7


Company Introduction


Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!



POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 8



Our Services & Strength



1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.

2.Accept OEM and ODM order for our customers.

3. Stable quality with good quality control, quality is our life.

4. 7*24 hours quick response for technology support.

5. Various PA system product for one shop purchase.

6. System solution designed can be offered base on requirement.

7. Reasonable price for a win win business .



POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 9



Packing&Shipping


POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 10

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 11

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 12

POE Emergency Voice Evacuation Systems EVAC Fire Alarm DC24V 13
