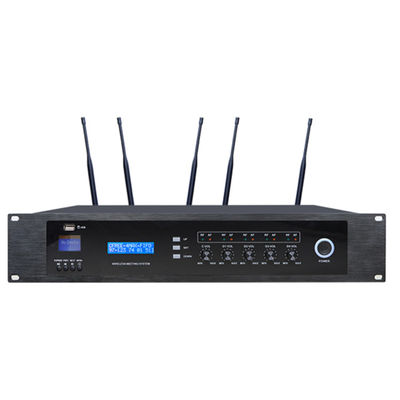

FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player

FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player
FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player

Large Image :  FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player

Product Details:
Place of Origin: Guangzhou China
Brand Name: FTD
Certification: CE，ROHS
Model Number: WCS-400
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $ 420~462
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player

Description
Model Number: WCS-400 Material: Metal
FREQUENCY RESPONSE: 60Hz-16KHz Type: Audio Conference System
High Light:

DC12V Wireless Conference Systems

,

FTD Wireless Conference System

,

UHF Master Controller MP3 Player

Wireless Conference System UHF Master Controller Built-In Recorder And MP3 Player







Product Description
Product Name
UHF Wireless Conference System Master Controller (With Recording)
Material
Metal
Package
Carton





Product performance description

Wireless Conference System Controller, capacity of 260 units, 5 units could be used simultaneously, first-in first out, chairman mode discussion mode, built-in recorder and MP3 Player.



FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player 0



Features
Simple operation UHF wireless conference system. Minimum cable wiring to save cable layout cost. Minimum cable connection ideal for rental use or portable conference system. Basic discussion conference system or audio conference system. Economy wireless conference system and meeting system. System capacity of 256 delegate units. Chairman unit with priority over delegate units. Chairman unit and delegate unit built-in rechargeable LIPO battery. Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes. 5 delegate microphones can be turned on at the same time. Microphones can be operated on the built-in rechargeable lithium battery. Battery working time of 16 hours and standby time of 60 hours. Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference. Built-in feedback suppressor to decrease feedback and noise effectively. Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function. Operation distance up to 300 meters and coverage up to 4,000 Square meters. Separate volume control for 5 channels on master controller front panel. Separate output level meter for each 5 channels for direct visual monitoring. Optional v auto-track video tracking function. UHF wireless conference system master control is powered by DC12V. Master control With unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system. Video tracking function need external equipment and cameras.


Specification
Model
WCS-400
Description
UHF Wireless Conference System Master Controller
Audio
Transmission Way
UHF wireless one way transmission by oscillation PLL technology
Channel Qty
5 channels (one for chairman Mic and four for delegate Mics)
Frequency Range
740MHz-790MHz @ ±10PPM stability
Modulation Mode
FM
Receive Sensitivity
-100dBM
Output Level
Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV
Frequency Response
60Hz-16KHz
S N Ratio
>105dB
THD
<0.5%
Communication Distance
300 meters
Control
Transmission Way
UHF wireless two way transmission
Channel Qty
16
Frequency Range
740MHz-790MHz
Modulation Mode
FSK
Receive Sensitivity
-100dBM
Transmitted Power
+6dBm (adjustable)
Frequency Deviation
<0.002
Communication Rate
100KBPS
Signal Coverage
4,000 Square meters
Mechanical
Power Supply
DC12V-15V, >=1A
Power Consumption
< 7W
Operation Temperature
-20ºC to +55ºC
Dimension
485(W) x 355(D) x 100(H)mm
Weight
7.2 kg
