Product Details:
|
| Power Output: | 15W/8Ω | NETWORK CHIP RATE: | 10/100Mbps |
|---|---|---|---|
| MAXIMUM SPL: | 97dB±3dB | SENSITIVITY: | 88dB±3dB /W/M |
| NETWORK PROTOCOL: | TCP/IP、UDP、ARP、ICMP、IGMP、SIP | AUDIO CODE: | MP2/MP3/PCM/ADPCM/G.711/G.722 |
| Highlight: | SIP IP Network PA System,ip based audio system 15W,sip speaker horn 15W |
||

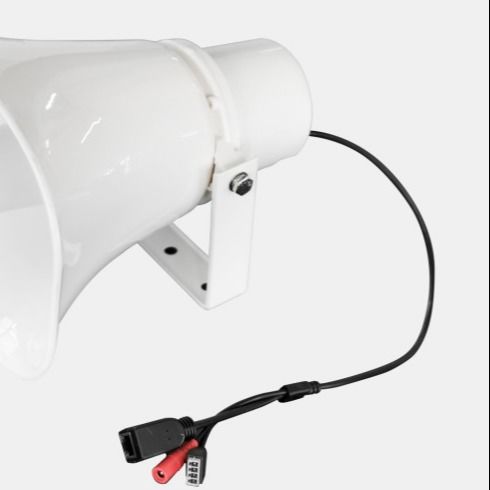

The IP horn Speaker is the latest in IP technology. It is based on SIP protocol, it support to work with any standard SIP software like SIP telephone software
The SIP IP speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and even power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.
The IP horn speaker is designed with 6” full range speaker with 15W class-D amplifier
There is one contact input to connect with other third fire alarm system, once the trigger is active, it will broadcast any pre set message to any IP device.
| Model | FIP-930SIP |
| Description | IP Based Horn Speaker |
| Power Output | 15W/8Ω |
| NETWORK CHIP RATE | 10/100Mbps |
| MAXIMUM SPL | 97dB±3dB |
| SENSITIVITY | 88dB±3dB /W/M |
| NETWORK PROTOCOL | TCP/IP,UDP,ARP,ICMP,IGMP,SIP |
| AUDIO CODE | MP2/MP3/PCM/ADPCM/G.711/G.722 |
| AUDIO SAMPLING & BIT RATE | 8kHz～44.1kHz, 16bit, 8kbps-320kbps |
| S/N | ≥90dB, 100-18KHz |
| NETWORK DELAY | Broadcast delay≤30ms |
| WORKING TEMP& HUMIDITY | -20℃～50℃,10%-90%RH(Not condensing) |
| Connector |
One RJ45 port for existing LAN/WAN & internet One closed contact input for emergency button, 0V, short circuit contact One closed contact output for emergency light, 0V, short circuit contact |
| Power Input | DC 12V |
| Operation Temp | -30 to 55℃ |
| Dimension | 285×285mm X 210mm |
| Weight | 1.8kg |
