Product Details:
|
| Power Output: | 10 Watts, Max 15W Watts | Built-in Amplifier: | 10W Watts |
|---|---|---|---|
| Speaker Unit: | 5” Woofer+1.5” Tweeter | Audio Quality: | 16digit Stereo CD Level |
| Sampling Rate: | 8K~48K | Bit Rate: | 8K~512Kbps |
| High Light: | IP Network PA System 92dB,2 Way Column Speaker 92dB,poe loudspeaker 5 inch |
||
The IP POE Powered outdoor column Speaker is the latest in IP technology. This Power over Ethernet (Compatible with both IEEE 802.3af & IEEE 802.3at) VoIP mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast.
The POE powered Column speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply.
The POE powered Column speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External DC12V connector is also equipped in this POE speaker for standby power supply use.
POE (Power over Ethernet) supportable all in one network audio system
POE IP PA system with background music, paging system and voice alarm system
Minimum cable connection over existing LAN/WAN/Internet system
Huge system capacity up to 1,200 zones
upport protocols of UDP,TCP/IP,IGMP
Compatible with both IEEE 802.3af & IEEE 802.3at
IP based POE powered 10W two way column speaker
Built-in IP module, 10W class-D amplifier and speaker
Single network cable for control, signal and power supply
Same POE speakers enable to be several group or zone defined
Different music or voice message simultaneously broadcasted through different POE speakers
Paging prioritization and background music system
Network adjustable speaker volume, treble, bass
| Model | FIP-940POE |
| Description | IP POE Wall Mount Speaker |
| Power Output (1KHz@-3dB) | 10 Watts, max 15W Watts |
| Built-in Amplifier | 10W Watts |
| Speaker Unit | 5” woofer+1.5” tweeter |
| Network I/F | 10/100Mbps |
| Protocol | ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
| Audio Format | MP3/WAV |
| Audio Quality | 16digit stereo CD level |
| Sampling Rate | 8K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧85dB |
| THD | ≦0.1% |
| Frequency Response | 100-18KHz(±3dB) |

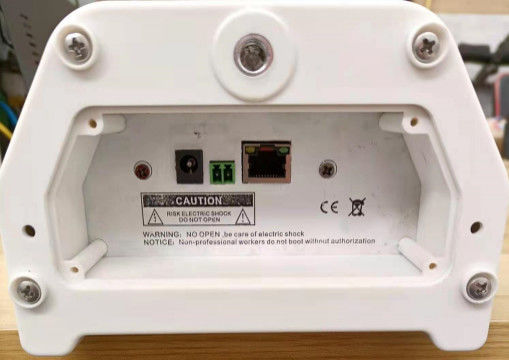

| Connector |
One RJ45 port for existing LAN/WAN & internet One control input, 0V, short circuit contact One control output, 0V, short circuit contact One DC12V battery backup input |
| Power Input | POE 802.3af or POE 802.3at & DC 12V |
| Operation Temp | -30℃ to +55℃ |
| Dimension | 373*152*100mm |
| Bracket | U-Shaped wall mount bracket |
| Material | ABS cabinet and steel grille |
| Weight | 2.8kg |
Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field.
Our Services & Strength
1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.
2.Accept OEM and ODM order for our customers.
3. Stable quality with good quality control, quality is our life.
4. 7*24 hours quick response for technology support.
5. Various PA system product for one shop purchase.
6. System solution designed can be offered base on requirement.
7. Reasonable price for a win win business .
