Product Details:
|
| THD: | 0.5% | Frequency Range: | UHF600-900MHz |
|---|---|---|---|
| Dynamic Range: | 110dB | Frequency Response: | 35Hz To 20KHz ± 3dB |
| Signal-to-noise Ratio: | 90dB | Effective Distance: | 100-150M |
| Highlight: | LCD UHF Wireless Microphone System,8 channel wireless microphone system,UHF wireless microphone LCD |
||

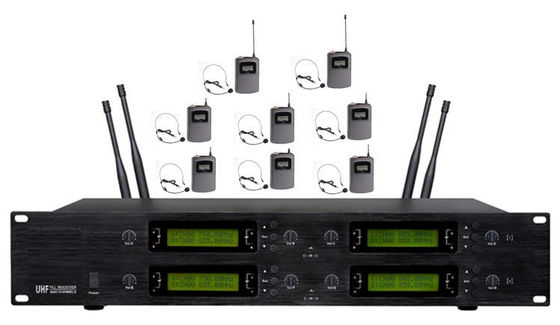

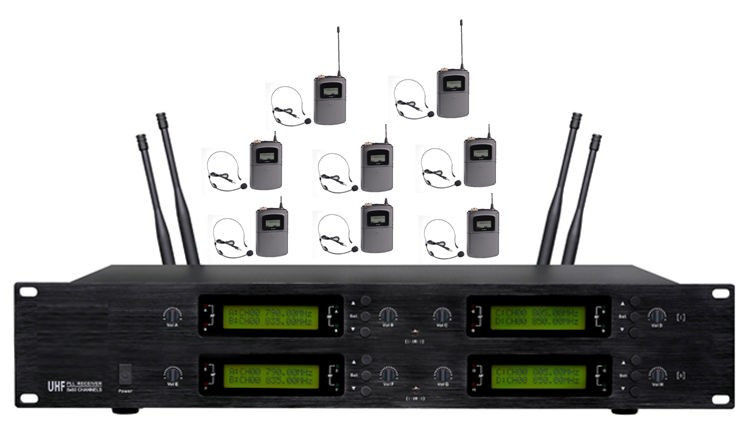

The 8 channel UHF wireless microphone system comes with one receiver and 8 belt packed headset microphones. It supports up to 1600 individual channels to be used simultaneously (multiple receivers required, 200 point x 8 band =1600 channels). This is perfect for any situation where multiple microphones are required. This system provides the quality and durability required in venues such as small room conference system or meeting system, which offers cost-effective solution and high reliable system. Provisions for rack mounting are built-in for convenience
8 channel UHF wireless microphone system
One controller and 8 belt packed headset microphones
Suitable for compact conference system for small board room & meeting room
UHF wireless technology to avoid any cable wiring and of easy portability system
Supports up to 1600 individual channels to be used simultaneously
No interference between two tabletop microphone
Infrared frequency synchronization
UHF band with PLL digital frequency synthesis
High sensitivity to meet the outdoor long-range performance requirements
Eight separate channel receiver with large and clear LCD display
Frequency indicator, signal strength indicator, microphone sound level indicator
High-fidelity output
Standard 1U rack mount design
Zinc alloy drop resistance tube
Anti-collision microphone mesh head
Anti-whistle dynamic cartridge
Quality microphone core
Exchangeable transmitter
Transmitter high/low power switcher, high power for longer distance, switch to low power to save battery
Battery status indicator
· Frequency range: UHF600-900MHz
· Total number of channels: 200 x8 = 1600
· Dynamic range: 110dB
· THD: 0.5%
· Frequency response: 35Hz to 20KHz ± 3dB
· Signal-to-noise ratio: 90dB
· Effective distance: 100-150M
· Transmit power: 10mmW
· Oscillation mode: PLL digital Frequency Synthesizer
· Modulation method: FM
· Image rejection: 50dB
· Frequency Modulation: 75Hz
· Channel conversion mode: touch switch / infrared frequency synchronization
· Voltage: DC2.4V-7.2V (2 AA batteries)
· Sensitivity: 2.0uV
· Oscillation mode: PLL digital Frequency Synthesizer
· Signal-to-noise ratio: 90dB
· Distortion: 0.5%
· Channel conversion mode: touch switch buttons
· Outputs: 4 balanced output, a 6.35-mixed output
· Output Voltage: balanced output: 500mV, mixed output: 350mV (30kHz modulation)
· Power: 110-240V, 50-60Hz (for both USA and Europe standard)
· Receiver size: 420 × 190 × 41mm, standard 19-inch 1U rack mount case
