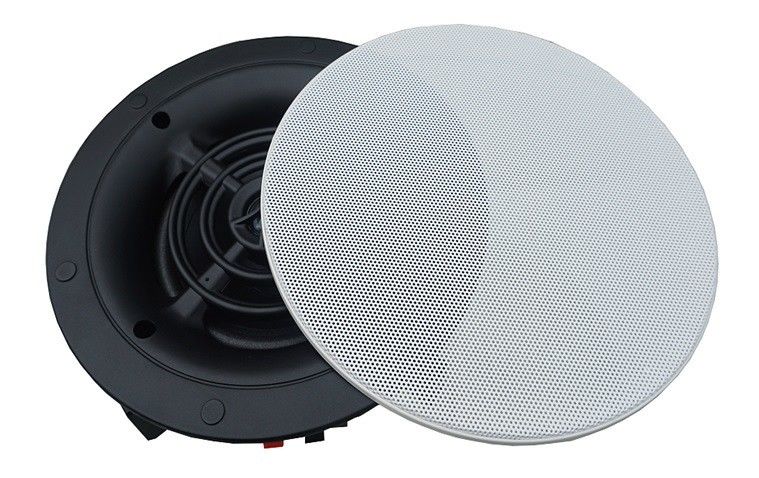

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker
6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker

Large Image :  6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE, RoHS & ISO9001
Model Number: FCS-740
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/month

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker

Description
Description: 6" Frameless In Ceiling Speaker Rated Power Output: 40W-20W-10W & 8 Ohms.
Line Input: 100V Or 70V & 8 Ohms Frequency Response: 60-20KHz
SPL(@1W/m): 93dB Dimensions: 252(D) ×98(H)mm
Weight: 1.85Kg Cutout Size: 211mm

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker





Product Description



6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 0





Features



1.Frameless in-ceiling speaker with crossover and transformer.
2.Perfect for high level commercial audio and meeting room sound system.
3.6” +1.5” coaxial PP woofer and silk dome tweeter.
4.Rated power output of 40 Watts.
5.Power taps at 40W-20W-10W & 8 Ohms.
6.Line input of 100V or 70V & 8 Ohms.
7.Built-in three way bass-middle-treble crossover.
8.Metal grille & ABS baffle in white color.
9.Flush mount easy and secure installation.
10.Exclusive grill design allows True Frameless Speaker.





Specification

Model

FCS-740

Description

6” Frameless In Ceiling Speaker

Power Taps

40W-20W-10W & 8 Ohms.

Line Input

100V or 70V & 8 Ohms

SPL(1W/1M)

93dB

Max.SPL (Rated W/1M)

105dB

Frequency Response (-10dB)

60-20KHz

Finish

Baffle: ABS, White; Grille: Steel, White

Speaker Driver

6" PP woofer & 1.5" silk dome tweeter

Cutout Size

211mm

Dimensions

252(D) ×98(H)mm

Weight

1.85Kg

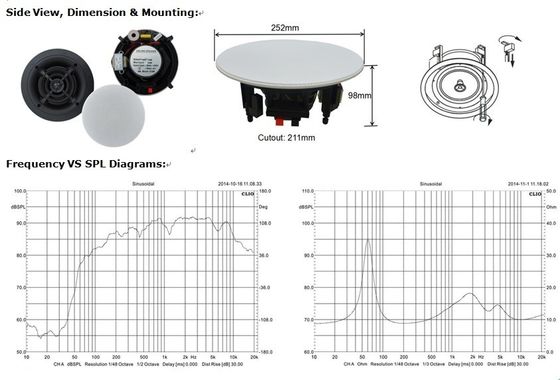

Installation Instructions

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 1


Exhibition


6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 2

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 3


Certifications


6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 4

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 5

6" Frameless In Ceiling Speaker (40-20-10 Watts, 100V & 8Ohms) Pa Speaker 6



FAQ



1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
