Product Details:
|
| Weight: | 2kg | S/N Ratio: | ≥85dB |
|---|---|---|---|
| Power: | 10W | THD: | ≦0.1% |
| Frequency Response: | 100-18KHz（±3dB） | Dimensions: | 200(Diameter)×100(Depth)mm |
| High Light: | IP POE Powered Ceiling Speaker,POE Powered Ceiling Speaker 10W,POE Ceiling Speaker 200×100mm |
||
Product performance description
|
Model |
FIP-901POE |
|
Description |
IP Based POE Ceiling Speaker |
|
Power Output |
10Watts RMS & 15W Watts Max (1KHz@-3dB) |
|
Built-in Amplifier |
15W Class D amplifier |
|
Network I/F |
10/100Mbps |
|
Protocol |
ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
|
Audio Format |
MP3/MP2 |
|
Audio Quality |
16digit stereo CD level |
|
Sampling Rate |
8K~48K |
|
Bit Rate |
8K~512Kbps |
|
Sensitivity |
92dB/1W/1M |
|
S/N Ratio |
≧85dB |
|
THD |
≦0.1% |
|
Frequency Response |
100-18KHz(±3dB) |
|

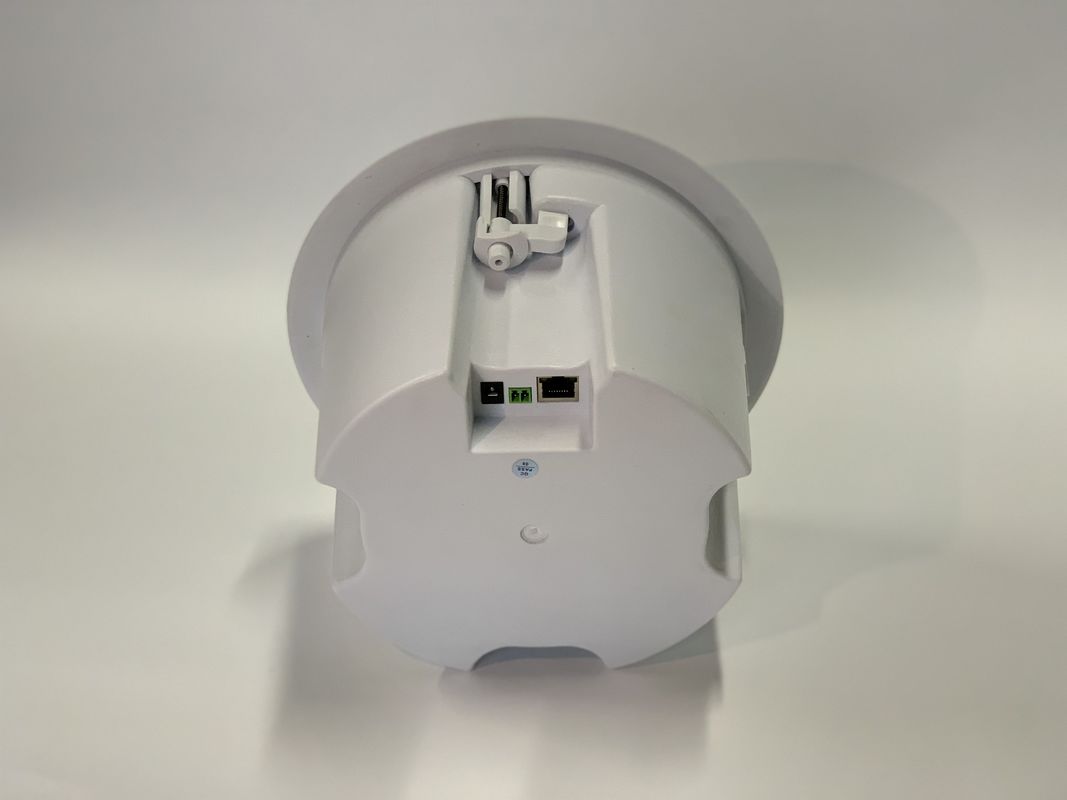

Connector |
One RJ45 port for existing LAN/WAN & internet |
|
Power Input |
POE 802.3af or POE 802.3at & DC 12V |
|
Operation Temp |
-30 to 55℃ |
|
Dimension |
200(Diameter)×100(Depth)mm |
|
Cutout Size |
175mm |
|
Weight |
1.2kg |
System Diagram:
