FTD 500W Home Audio Power Amplifier System Multipurpose

FTD 500W Home Audio Power Amplifier System Multipurpose
FTD 500W Home Audio Power Amplifier System Multipurpose FTD 500W Home Audio Power Amplifier System Multipurpose FTD 500W Home Audio Power Amplifier System Multipurpose

Large Image :  FTD 500W Home Audio Power Amplifier System Multipurpose

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE, RoHS & ISO9001
Model Number: FA-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/month
Contact Now

FTD 500W Home Audio Power Amplifier System Multipurpose

Description
Description: Public Address System 500W Mixer Amplifier Rated Power Output: 500W RMS
Power Consumption: 650W Dimension: 484(W)×366(D)×88(H)mm
Packaging: 520(W)×435(D)×185(H)mm Net. Weight: 16.5kg
Gross Weight: 17kg Protection: High Temp, Short Circuit, Overload Protection
High Light:

FTD 500w audio power amplifier

,

home audio power amplifier system FTD

,

FTD multipurpose 500 watt amplifier

Pa System Complete Audio Power Amplifier 500w Mixer Power Amplifier







Description:



The Public Address (PA) 500 Watts Mixer Amplifier is suitable for school, super market, bank, hotel BGM and speech use.

It is integrate pre amplifier and mixer power amplifier into one 19" 2U height unit of tabletop design, which is economy but of high reliable performance.

The tabletop mixer amplifier rated power out at 500W. Its speaker outputs with 100V, 70V and 4‐16ohms for versatile connections.

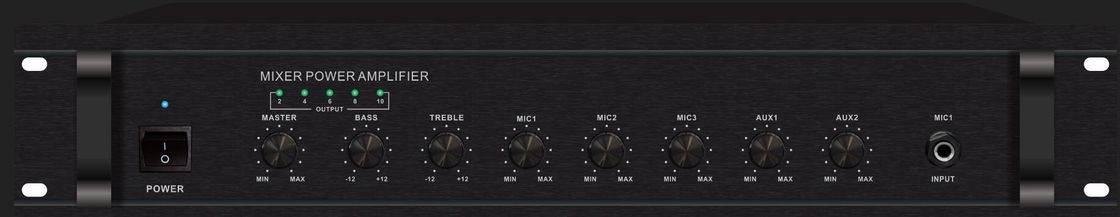

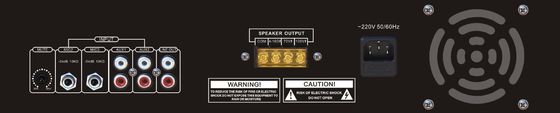

It integrates three microphone and two line inputs. Mic1 VOX with priority. Microphone1 on front panel by phone jack, microphone2‐3 on rear panel by phone jack, line 1‐2 on rear panel by RCA inputs. Microphone1‐3 & Line1‐2 inputs volume control on front panel with bass and treble tone control.

The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.





Features



1.Public address (PA) tabletop mixer power amplifier.
2.Commercial & industrial range BGM & paging amplifier.
3.Rated outputs of 500W.
4.70V, 100V and low impedance 4-16 ohms speaker outputs.
5.3 microphone inputs and 2 line inputs.
6.Mic1 on front panel by phone jack, mic2-3 on rear panel by phone jack.
7.Line 1-2 inputs on rear panel by RCA.
8.Microphone1 of VOX features of highest input priority.
9.Microphone1-3 & Line1-2 inputs volume control on front panel with bass and treble tone control.
10.Power and output level meters.
11.Overload, short circuit and high temp protection.
12.With natural cooling fan to control the internal temperature.





Specification



Model

FA-500

Description

Public Address System 500W Mixer Amplifier

Rated Power Output

500W RMS

Speaker Output

70V, 100V and 4-16 ohms

Input

Mic1-3: 600 ohms 5-8 mV, unbalanced, Line1-2: 10k ohms 150-470 mV,
unbalanced

Frequency Response

60-15KHz

THD

<0.5% at 1kHz, 1/3 rated power

S/N Ratio

Line: 85 dB , MIC: >72 dB

Protection

High temp, short circuit, overload protection

Power Supply

AC230V or AC110V, 50-60Hz

Power Consumption

650W

Dimension

484(W)×366(D)×88(H)mm

Packaging:

520(W)×435(D)×185(H)mm

Net. Weight

16.5kg

Gross Weight

17kg






Installation Instruction

FTD 500W Home Audio Power Amplifier System Multipurpose 0



FTD 500W Home Audio Power Amplifier System Multipurpose 1



FTD 500W Home Audio Power Amplifier System Multipurpose 2



Exhibition


FTD 500W Home Audio Power Amplifier System Multipurpose 3

FTD 500W Home Audio Power Amplifier System Multipurpose 4





Certifications


FTD 500W Home Audio Power Amplifier System Multipurpose 5

FTD 500W Home Audio Power Amplifier System Multipurpose 6

FTD 500W Home Audio Power Amplifier System Multipurpose 7





FAQ



1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
