Economy 30w Pa System Power Amplifier Pa Mixer Amplifier With ECHO
Features
1.Compact mini size public address amplifier
2.Ideal for classroom sound system use
3.Built-in 100V/70V transformer technology
4.Tabletop amplifier with Mp3 player, FM radio & blue tooth
5.Rate power output at 30W to 60W . Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms

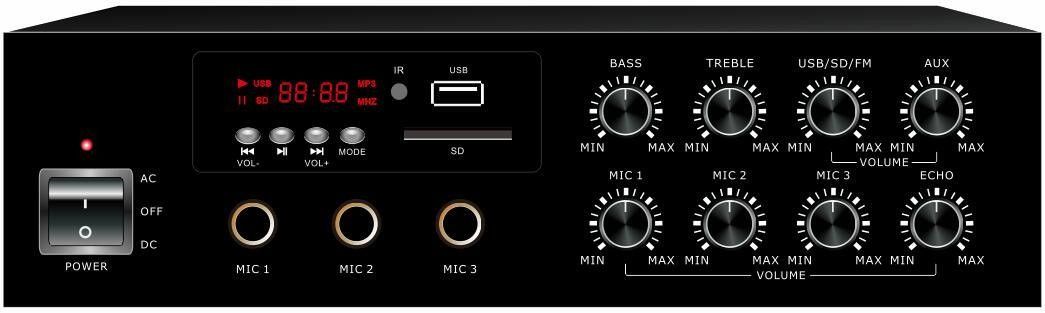

6.Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
7.LED indicators for power, clip, protect and signal

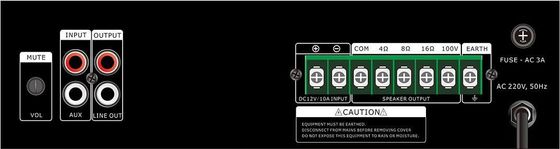

8.Mic1-3 and one line. Mic1 of highest priority and one RCA line input and one RCA line output
9.Volume control for Mic1-3, line1 and ECHO, Mp3/FM, bass/treble and master
10.With short-circuit, clip, overload and high temp protection
11.AC220V or 115V & 12V DC both operation system
Specification
|
|
|
|
|
|
Public Address System 30W Mixer Amplifier
|
|
|
|
|
|
|
|
|
|
Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1: 10k ohms(Ω) 150-470 mV,
unbalanced
|
|
|
|
|
|
<0.5% at 1kHz, 1/3 rated power
|
|
|
Line: 85 dB , MIC: >72 dB
|
|
|
High temp, short circuit, overload protection
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Installation Instructions
Exhibition
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
