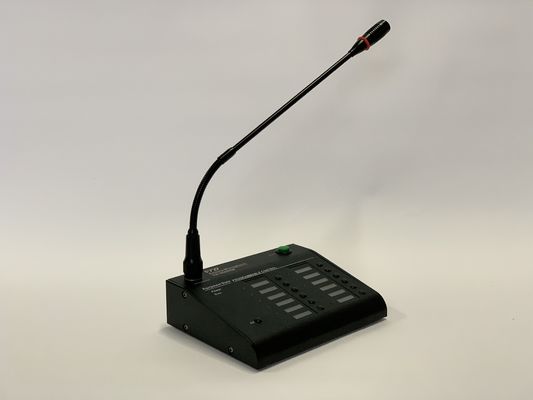

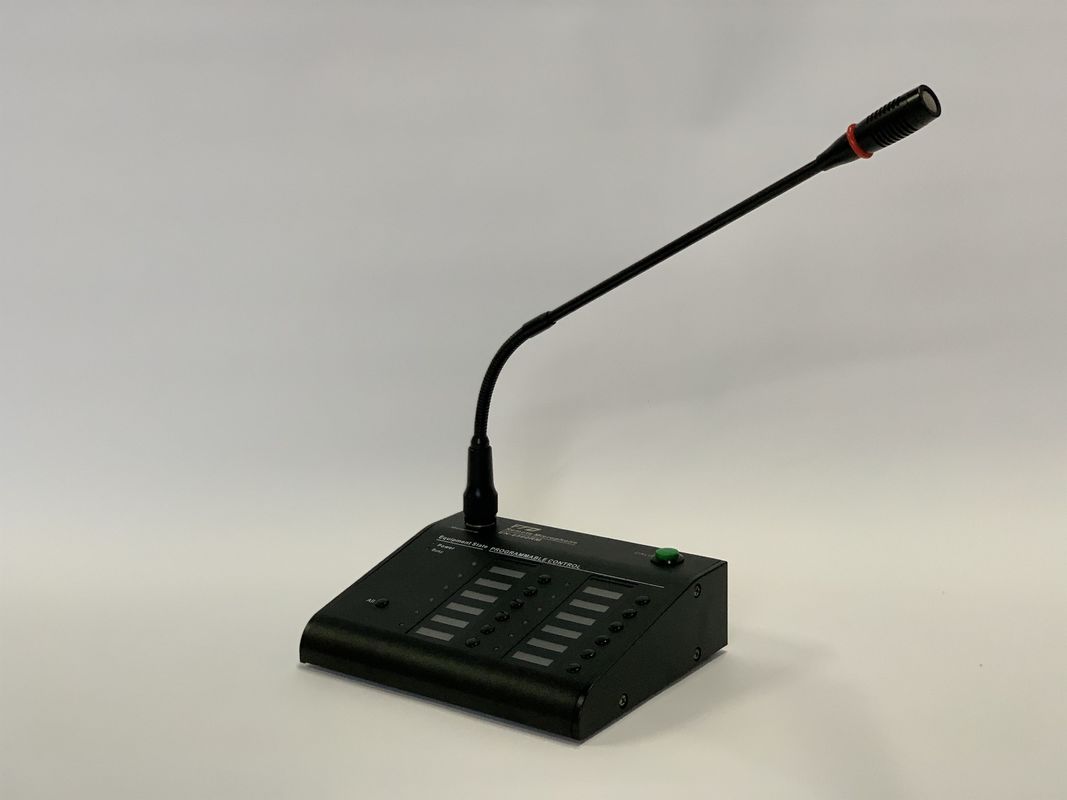

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg
ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg

Large Image :  ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg

Product Details:
Place of Origin: CHINA
Brand Name: FTD
Certification: CE
Model Number: EN-6500RM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 500PCS Per Month

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg

Description
Zone Capacity: 12 Zones System Capacity: 32 Remote Microphones
Frequency Response: 80Hz~16kHz Weight: 1.5kg
Dimension: 256(W)×149(H)×52(D) Mm Warranty: 3 Years
High Light:

Zone Voice Alarm Remote Microphone ODM

,

ODM Voice Alarm Remote Microphone

,

1.5kg Remote Microphone Station

EN-54 Zone Voice Alarm Remote Microphone


Product Description

Product Name Zone Voice Alarm Remote Microphone
Material Metal
Package Carton



ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 0ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 1







Features

  • Digital voice evacuation system remote paging microphone.
  • Each microphone of 12 zone capacity.
  • System support 32 remote microphones of loop connection.
  • System indicators of AC, DC, fault, Mic status and test.
  • 12 zone selection buttons and all zone button.
  • 12 zone selection buttons can be programmed.

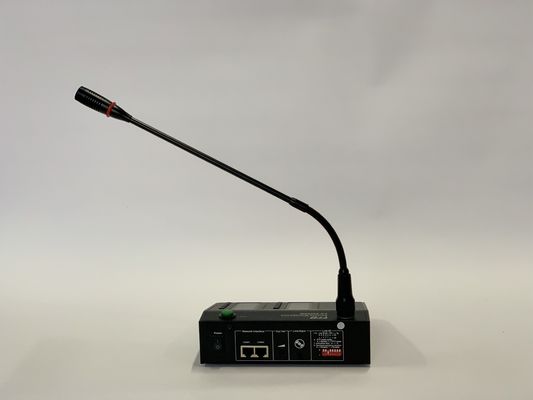

  • Two RJ45 ports for connection with EN-6500 and next remote microphone.
  • One 3.5mm line input, with output volume control.
  • Support PPT and normal paging two modes.
  • CAT5 or CAT6 cable communication up to 600 meters.
  • DC24V power supply from EVAC-500 controller.
  • Support loop connection and paging microphone failure has been supervised.


System Diagram&Specification

Model EN-6500RM
Description Voice Alarm Remote Microphone
Power Consumption 3W
Zone Capacity 12 Zones
System Capacity 32 Remote microphones
Line Inputs 350mV, 10kΩ
Mic Input 5mV, 600Ω
Frequency Response 80Hz~16kHz
THD <1% at RMS,1KHz
S/N Ratio >70dB
Operating Temp -20℃ to +70℃
Power Supply DC24V, ±20%
Humidity <95% no condensation
Dimension 256(W)×149(H)×52(D) mm
Weight 1.5kg





ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 2





Certifications&Exhibition


ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 3

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 4

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 5

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 6


Company Introduction


Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!



ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 7



Our Services & Strength



1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.

2.Accept OEM and ODM order for our customers.

3. Stable quality with good quality control, quality is our life.

4. 7*24 hours quick response for technology support.

5. Various PA system product for one shop purchase.

6. System solution designed can be offered base on requirement.

7. Reasonable price for a win win business .



ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 8



Packing&Shipping


ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 9

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 10

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 11

ODM EN54 Zone Voice Alarm Remote Microphone Station 1.5kg 12
