PA System Two Channel 240W Pa Amplifiers Class-D Power Amplifier
Features:
1.Switching power technology digital power amplifier
2.Class-D PA power amplifier of minimum power consumption
3.1RU height for less rack space and less heat generation
4.Two channel power amplifier into 19” rack mount unit
5.Rated power output at 2x240W
6.Two channel separate speaker outputs 8Ω/100V
7.Balanced line input by phoenix connector for two channels
8.Each input with separate gain control.
9.Each two channel with high-cut filter.
10.Built-in auto standby feature to save power consumption
11.Separate two channel indicators for protection, clip, input and output
12.Complete short circuit, overload, high temp, clip and DC protection
13.Wide AC input switchable between 115V and 230V
14.24V DC input is optional.
Description:
The FA-2240D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.
The FA-2240D is of rated power output at 2×240W, so it could be used as two zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

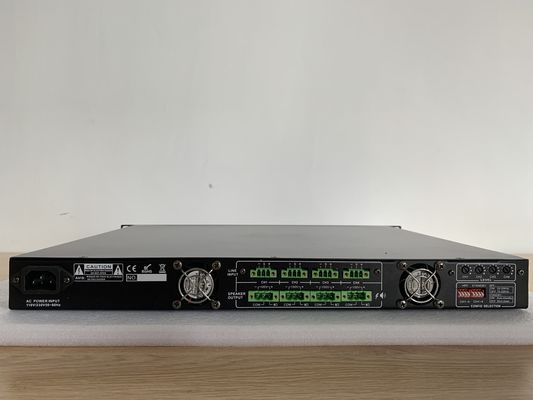

There are two balanced inputs by phoenix connector for each channel with gain control. Two separate zone speaker outputs both by 100V & 8ohms. The built-in two channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting.

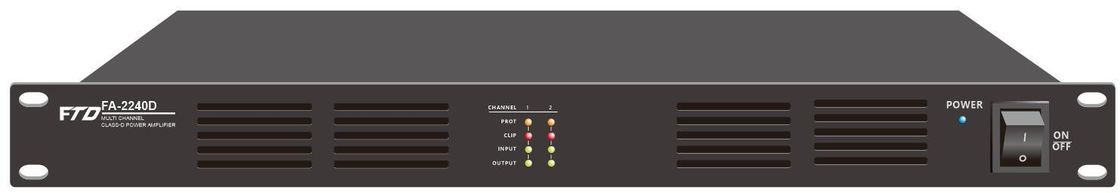

Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection.
Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation. 24V DC input is included.
|
|
|
|
|
|
|
|
Class-D Two Channel Power Amplifier
|
|
|
|
|
|
|
|
|
|
|
|
L/H Cut OFF 20Hz-20KHz (+1/-2dB)
L/H Cut ON 70Hz-10KHz (+1/-3dB)
|
|
|
0.775V, 0dBu, balanced phoenix connector
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC input switchable between 115V & 230V, 50-60Hz
24V DC input as option at order request.
|
|
|
|
|
|
|
|
|
|
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
