Product Details:
|
| Product Name: | Class-D Four Channel 240W Power Amplifier | Weight: | 9KG |
|---|---|---|---|
| Power Supply: | AC Input Switchable Between 115V & 230V, 50-60Hz | Use: | HomeTheatre |
| Speaker Output: | 4Ω & 100V | Rated Power Output: | 4x240W |
| Power Consumption: | 1200W | Frequency Response: | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) |
| High Light: | class d power amp ODM,4*240W Class D Power Amplifier,230V home theatre amplifier |
||

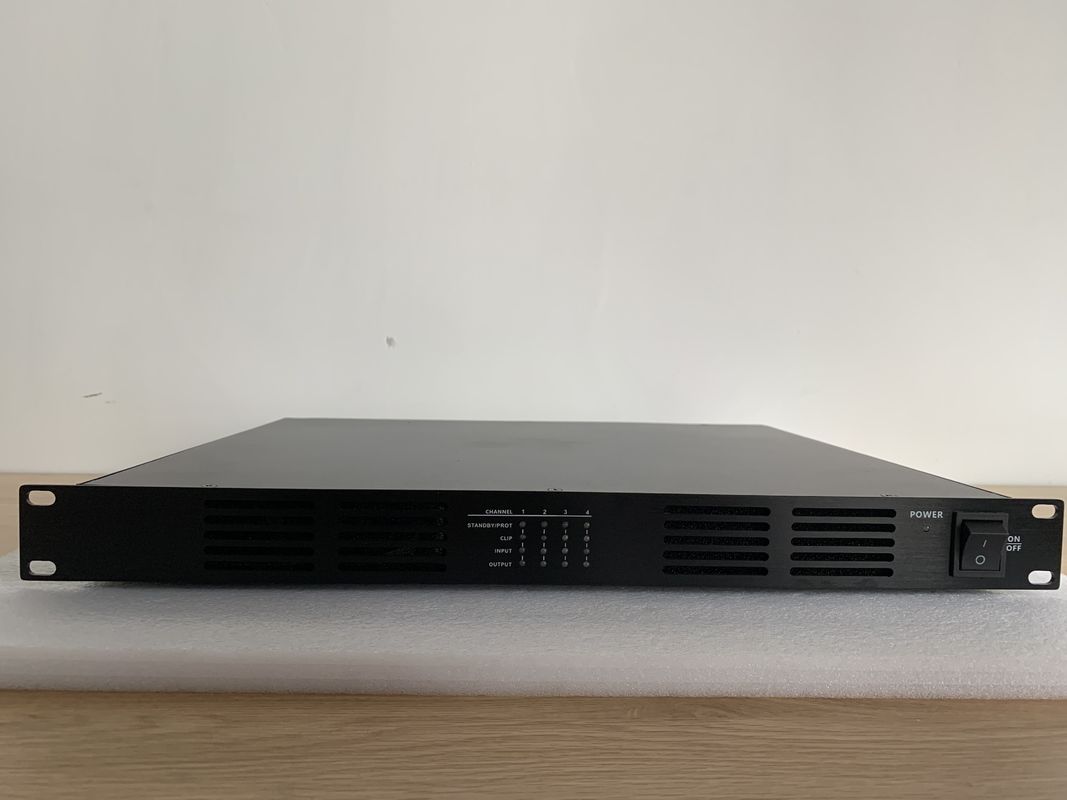

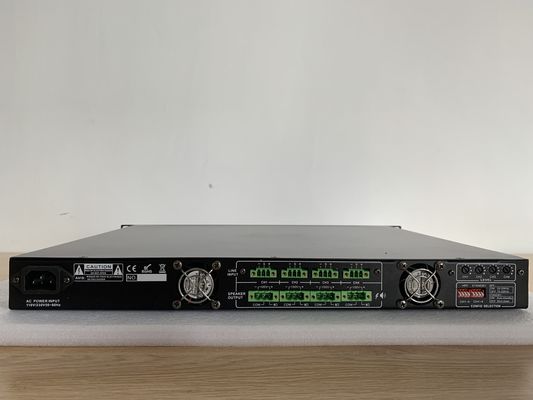

Public Address System 4*240W Power Class D Audio Amplifier
Product Description
Features
Description
Specification
| Model | FA-4120D | FA-4240D | FA-4350D | FA-4500D |
| Description | Class-D Four Channel Power Amplifier | |||
| Rated Power Output | 4x120W | 4x240W | 4x350W | 4x500W |
| Speaker Output | 4Ω & 100V | |||
| Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) |
|||
| Input | 0.775V, 0dBu, balanced phoenix connector by four channels | |||
| Input Impedance | 10KΩ | |||
| THD | <0.1% (1KHz/-3dBv, 100W) | |||
| S/N Ratio | >80dB | |||
| Crosstalk | >60dB, 1KHz, Max output | |||
| Power Consumption | 600W | 1200W | 1750W | 2300W |
| Power Supply | AC input switchable between 115V & 230V, 50-60Hz | |||
| Dimension | 482(W)x420(D)x44(H) mm | |||
| Weight | 8.5kg | 9KG | 9.5KG | 15KG |
FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 12 months for speaker.
4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.
6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
