FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption

FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption
FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption

Large Image :  FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption

Product Details:
Place of Origin: China
Brand Name: FTD
Certification: CE, RoHS & ISO9001
Model Number: FA-4350D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/month
Contact Now

FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption

Description
Product Name: Class-D Four Channel 350W Power Amplifier Rated Power Output: 4x350W
Weight: 9.5KG Power Supply: AC Input Switchable Between 115V & 230V, 50-60Hz
Use: HomeTheatre Speaker Output: 4Ω & 100V
Power Consumption: 1750W Input: 0.775V, 0dBu, Balanced Phoenix Connector By Four Channels
High Light:

class d power amplifiers 1750W

,

FTD 4 channel amplifier home theater

,

4*350W class d stereo amplifier

Public Address System 4*350W Power Amplifier Class D Audio Amplifier





Product Description



FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 0FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 1





Features



1. Switching power technology digital power amplifier
2. Class-D PA power amplifier of minimum power consumption
3. Less rack space and less heat generation
4. Four channel power amplifier into 19" rack mount unit
5. Rated power output at 4x350W
6. Four channel separate speaker outputs 4Ω/100V
7. Balanced XLR input by phoenix connector for four channels
8. Each input with separate gain control.
9. Each four channel with high-cut filter.
10. Built-in auto standby feature to save power consumption

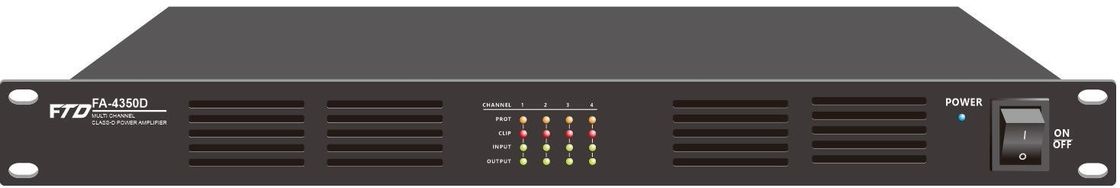

11. Separate four channel indicators for protection, clip, input and output
12. Complete short circuit, overload, high temp, clip and DC protection
13. Wide AC input switchable between 115V and 230V
14. DC24V is optional





Description



The FA-4350D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.

The FA-4500D is of rated power output at 4×350W, so it could be used as four zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 4ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

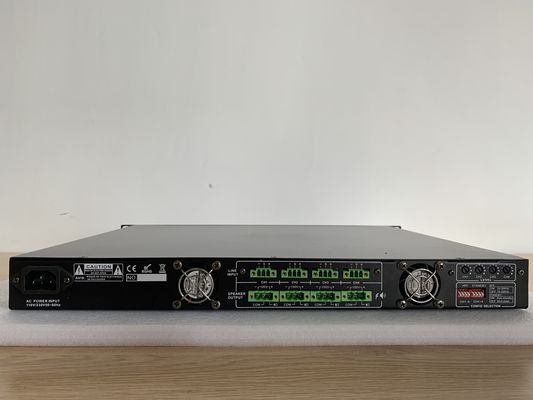

There are four balanced inputs by phoenix connector for each channel with gain control. Four separate zone speaker outputs both by 100V & 4ohms. The built-in four channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting.

Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload,high temp, clip and DC protection.

Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation.





Specification



Model FA-4120D FA-4240D FA-4350D FA-4500D
Description Class-D Four Channel Power Amplifier
Rated Power Output 4x120W 4x240W 4x350W 4x500W
Speaker Output 4Ω & 100V
Frequency Response L/H Cut OFF 20Hz-20KHz (+1/-2dB)
L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input 0.775V, 0dBu, balanced phoenix connector by four channels
Input Impedance 10KΩ
THD <0.1% (1KHz/-3dBv, 100W)
S/N Ratio >80dB
Crosstalk >60dB, 1KHz, Max output
Power Consumption 600W 1200W 1750W 2300W
Power Supply AC input switchable between 115V & 230V, 50-60Hz
Dimension 482(W)x420(D)x44(H) mm
Weight 8.5kg 9KG 9.5KG 15KG





Exhibition


FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 2

FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 3





Certifications


FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 4

FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 5

FTD 4*350W 4 Channel Class D Power Amplifiers 1750W Power Consumption 6





FAQ



1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
