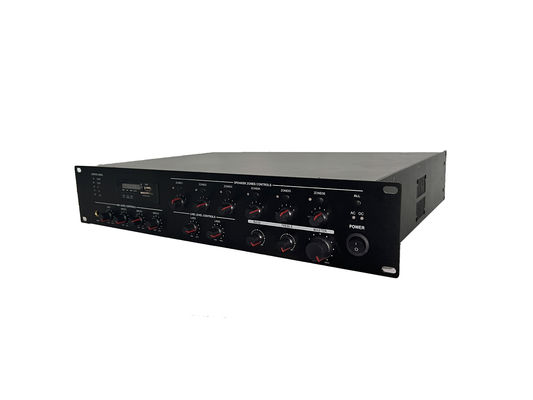

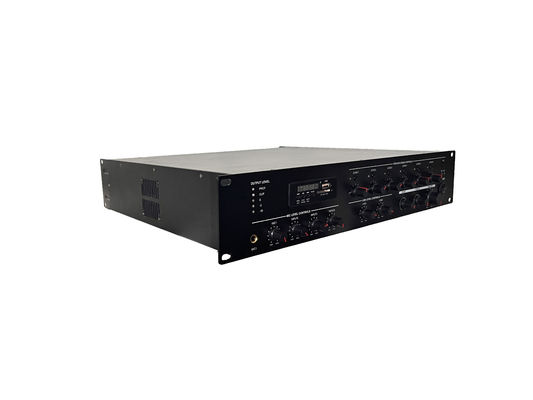

Black Audio PA Mixer Amplifier 6 Zone 240W

Large Image : Black Audio PA Mixer Amplifier 6 Zone 240W

Product Details:

Place of Origin:	China
Brand Name:	FTD
Certification:	CE, RoHS & ISO9001
Model Number:	FA-240R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/month

Contact Now

Black Audio PA Mixer Amplifier 6 Zone 240W

Description

PA Amplifiers Multizone Power Mixer Amplifier 500W 6 Zone Mixer Amplifier:	FA-240R 6 Zone Mixer Amplifier	Weight:	12kg
Voltage:	AC230V Or AC110V, 50-60Hz	Color:	Black
Packing:	Carton	Carton:	High Temp, Short Circuit, Overload Protection
Power Consumption:	400W	THD:	<0.5% At 1kHz, 1/3 Rated Power
High Light:	6 zone audio amplifier DC24V , 6 zone 240W Power Amplifier , 240W pa mixer amplifier

6 Zone 240W Power Amplifier Mixer Pa Mixer Amplifier

Product Description

Features

1.Public address (PA) 6 zone commercial mixer power amplifier.
2.19” rack mount amplifier of 2U height.
3.Rated outputs of 60W, 120W, 240W, 350W to 500W.
4.6 zone speaker outputs of 100V or 70V.
5.Six zone speaker outputs with independent volume control.
6.Built-in MP3 player by USB & SD and FM tuner and Blue tooth
7.Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).

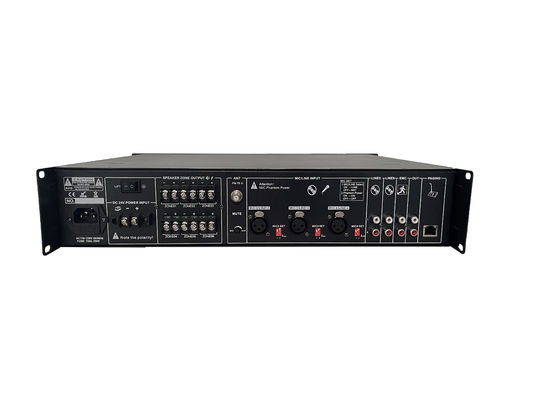

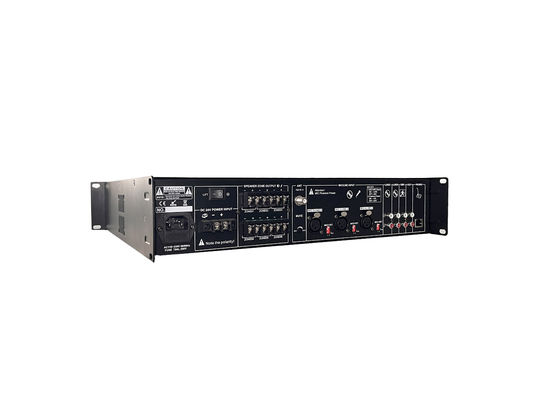

8.Line 1-2 inputs on rear panel by RCA.
9.EMC input on rear panel with highest priority by RCA.

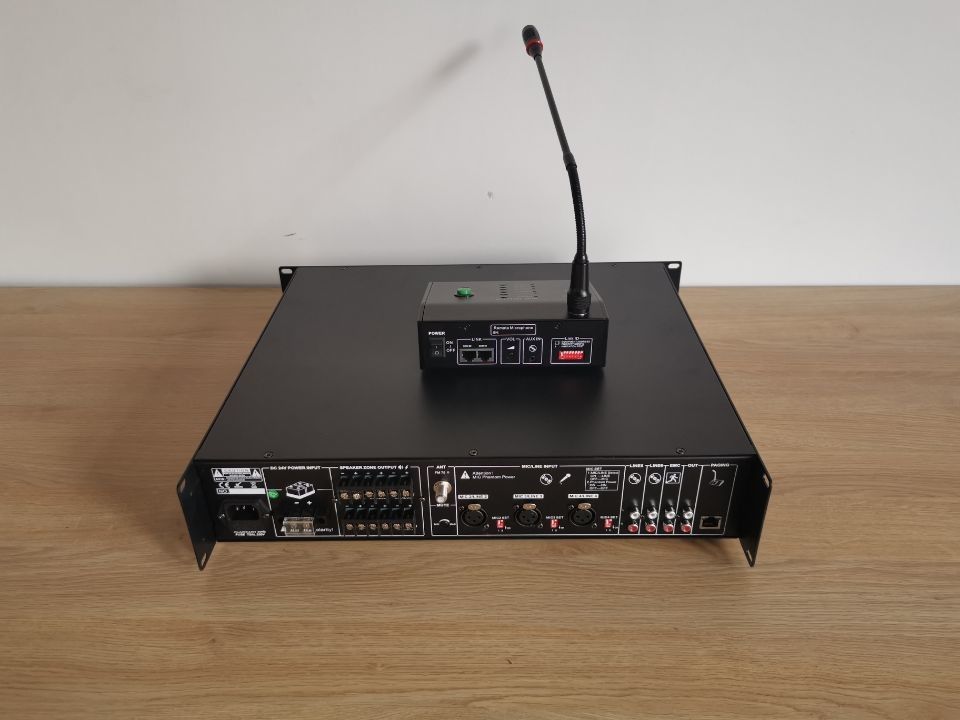

10.One amplifier capacity of 6 remote paging microphones FA-60RM up to 300 meters.
11.Microphone1 of VOX features of highest input priority except EMC input.

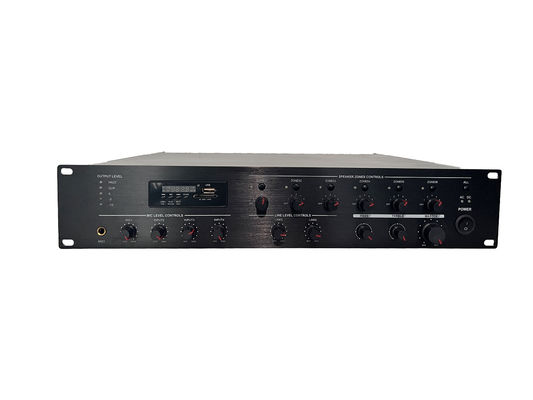

12.Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
13.AC and DC Power, protection, clip six zone status indicators and output level meters.
14.Overload, short circuit and high temp protection.
15.AC 230V and DC24V operation system.

Description

The PA 6 Zone Mixer Amplifier with MP3 and FM tuner, its rated power output from 60W, 120W, 240W, 350W to 500W, it is ideal for school, super market, bank, hotel BGM and speech use.

It is all in one solution with two sources, preamplifier and mixer power amplifier into one 19” 2U height unit, which is economy but of high reliable performance. It integrates 2 audio sources into a mixer amplifier, plus Mic1(6.3mm) and Mic/Line input 2-4 (XLR), two line inputs, one EMC input and one RS45 input for 6 zone remote paging microphone. Mic1 VOX with highest priority except EMC input. One USB and one SD slots on front provide easy access and operation for installer and end-user.

The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.

These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center.

Specification

Model	FA-60R	FA-120R	FA-240R	FA-350R	FA-500R
Description	Public Address System 60W Mixer Amplifier
Rated Power Output	60W	120w	240w	350w	500w
Speaker Output	70V, 100V, 6 zone speaker out 100V
Input	Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1-2: 10k ohms(Ω) 150-470 mV, unbalanced
Frequency Response	60-15KHz
THD	<0.5% at 1kHz, 1/3 rated power
S/N Ratio	Line: 85 dB , MIC: >72 dB
Protection	High temp, short circuit, overload protection
Power Supply	AC230V or AC110V, 50-60Hz
Power Consumption	100W	200W	400W	500W	600W
Dimension	418(W)×318(D)×88(H)mm
Gross Weight	8.2kg	9.5kg	2kg	13kg	14.5kg
Warranty	5 years

Installation Instructions

Company Profile

Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years′ experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!

Our main products are Public address system ,EVAC system, IP PA system ,conference system ,PA amplifier and PA speaker.These
system are all designed and produced by our engineer. We are accept OEM,ODM order.

Exhibition

Certifications

FAQ

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
